Mobile App Automation

This project is for end-to-end testing of the My Demo App APK mobile application using the Page Object Model (POM) pattern. The following testing procedure covers a complete shopping journey, including login, catalog browsing, sorting, adding products to the cart, modifying cart items, checkout, order confirmation, and logout.

Target/Goals

The following scenarios will be replicated:

Customer Shopping Procedure

Open mobile application and log in
Navigate to the Catalog section
Sort products by Name (any order)
Sort products by Price (any order)
Add 2nd product to cart with quantity 3
Add 3rd product to cart with quantity 2
Add 5th product to cart with quantity 1

Customer Cart & Checkout Procedure

Go to Shopping Cart
Decrease quantity of 1st product
Increase quantity of 3rd product
Remove 2nd product from cart
Proceed to Checkout
Complete the checkout process (including payment and order confirmation)
Log out from the application

✨ Key Features

Full end-to-end test coverage of user journeys—from login to logout.
Structured implementation using Page Object Model (POM) for maintainability and scalability.
Automation of cart operations: add, remove, update items, and validate price calculations.
Seamless checkout automation, including address entry, payment, and instant order confirmation.
Easy configuration and management of test data for diverse scenarios.
Comprehensive reporting with HTML reports, logs, and screenshots.

🧩 Technology Stack

Java (Core programming language)
Appium (Mobile application automation)
Selenium (User interface automation)
TestNG (Test orchestration)
Allure Reports (Reporting)
Android Emulator/Real Device (Test execution)

📋 Overview

This project demonstrates complete automation of a demo mobile shopping cart application using the Page Object Model (POM) approach. The automation covers real-device execution, multiple scenario flows, parallel testing, and detailed reporting.

Demo App Video Overview:
Watch the app demo
Full Automation Run on Real Device:
View real device test execution
Scenario 1 to 7 Execution:
See scenario flows in action
TestNG Parallel Test Execution:
Parallel execution video
Glimpse of Automation Code:
Preview source code

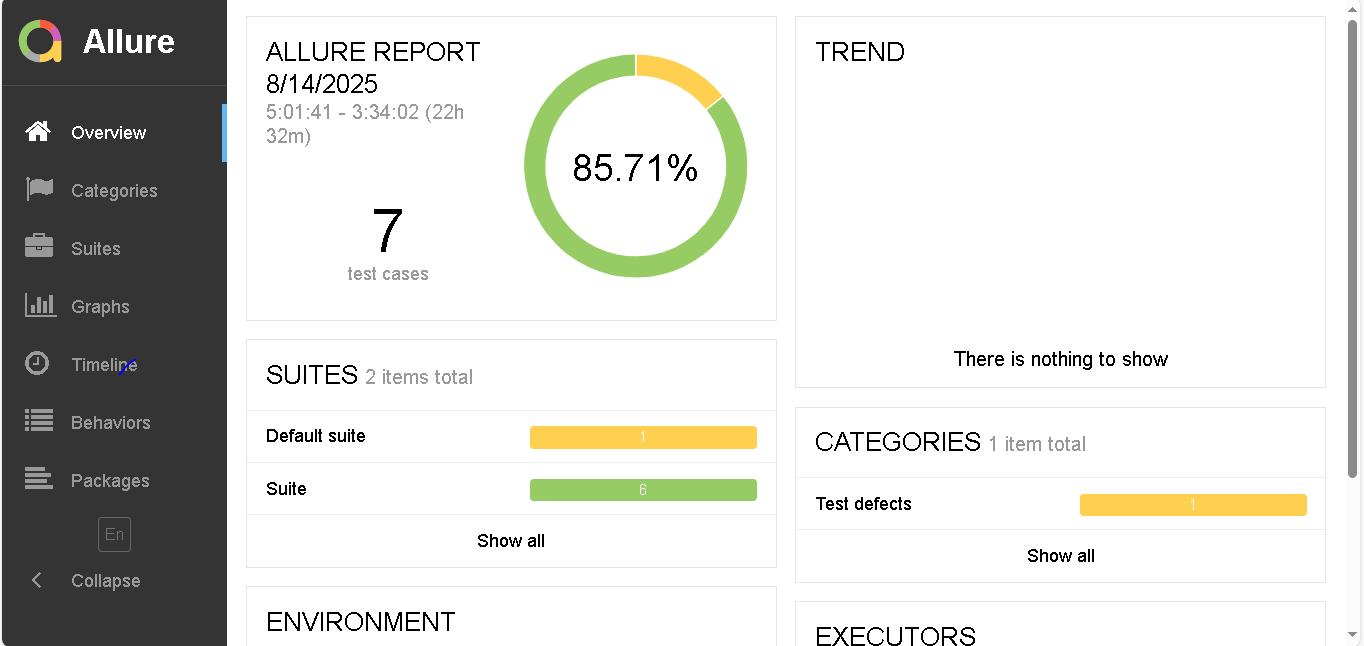

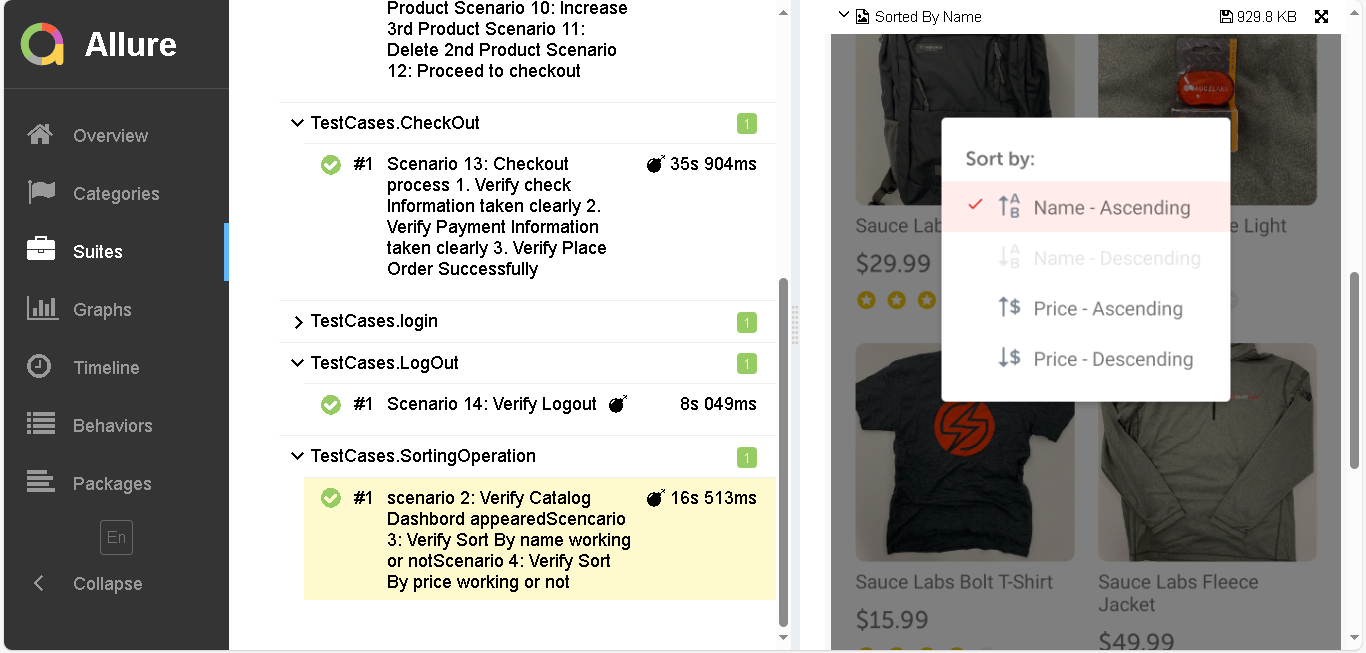

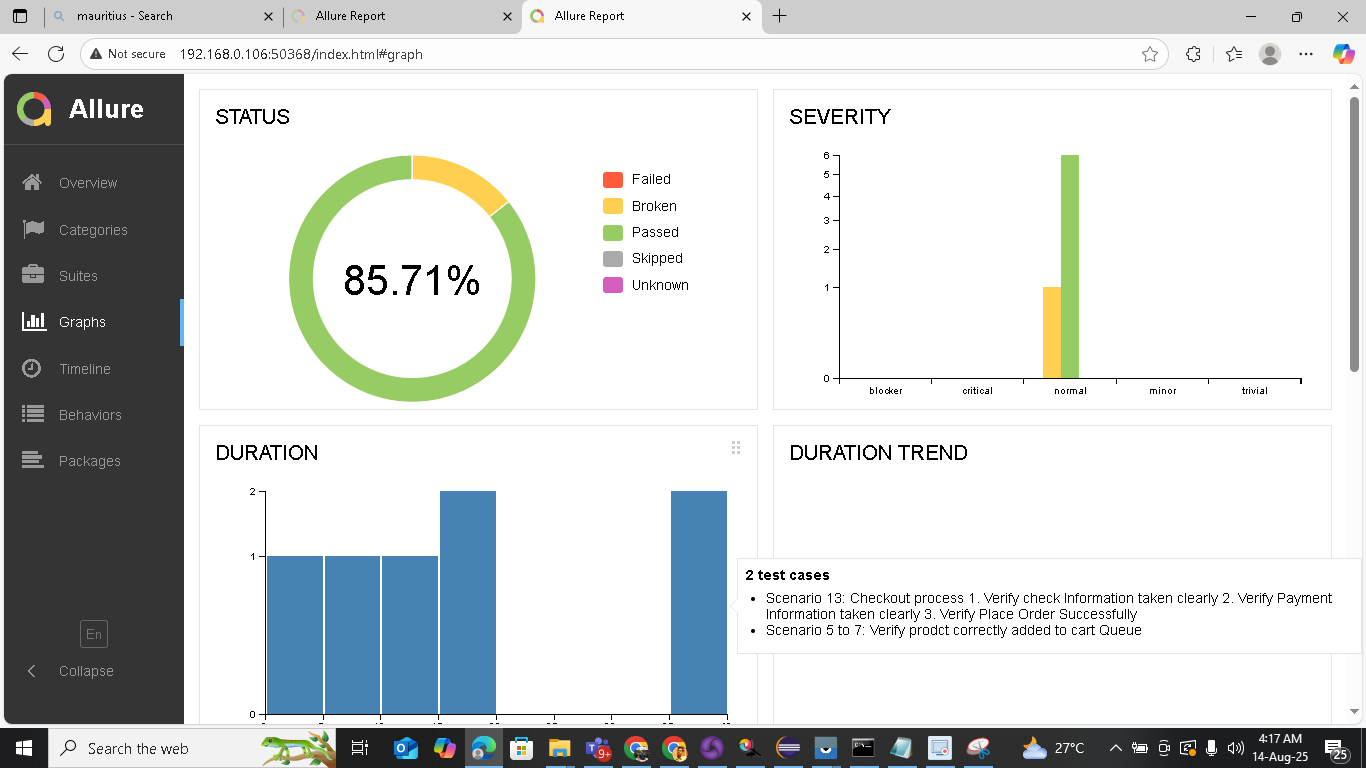

Check Report:
Live report link
Report overview screenshot

🚀 Getting Started

1. Prerequisites

Java JDK 8 or above
Maven
Appium Server (Download)
Android emulator or physical device
Demo App APK

2. Installation

git clone https://github.com/Sakif1997/ShoppingCart-Mabile-App_Automation.git
cd ShoppingCart-Mabile-App_Automation
mvn install

3. Appium Server Setup

Start Appium Desktop or run via CLI:
```
appium
```
Make sure the device/emulator is connected and the APK path is set in the configuration.

4. Execution

mvn test

📦 Project Structure

src/
  main/
    java/
      pages/         # Page Object classes (LoginPage, CartPage, CheckoutPage, etc.)
      tests/         # Test classes for scenarios and E2E flows
      utils/         # Utilities for driver management, data, config
      reports/       # Reporting and logging modules
resources/
  testdata/          # External test data files
  config/            # Configuration files (device, environment, credentials)

🧠 My Thought Process

Focused on achieving a modular and reusable automation framework suitable for real-world mobile app testing.
Prioritized maintainability by adopting the Page Object Model (POM) for separating UI interactions from test logic.
Emphasized the importance of reporting and logging for debugging and transparency in test results.
Selected Appium for its robust cross-platform support and ability to interact with real devices and emulators.

🛠 Approach and Methodology

Designed the automation framework using POM, segregating functionality into distinct page classes.
Implemented utility classes for driver setup, data management, and configuration to ensure flexibility.
Integrated Appium server to facilitate communication between automation scripts and the mobile app, enabling device-agnostic testing.
Adopted TestNG for orchestrating test execution and Extent Reports for comprehensive reporting.
Utilized externalized test data to enable data-driven testing and scenario coverage.

📋 Steps Taken to Complete the Tasks

Analyzed the mobile app workflow and identified key pages: login, catalog, cart, checkout, and order confirmation.
Created corresponding Page Object classes encapsulating element locators and user actions.
Developed utility classes for driver management, configuration, and test data handling.
Configured Appium server to connect with Android emulator and specified APK path.
Wrote modular and maintainable test scripts for smoke, functional, regression, and end-to-end scenarios.
Implemented reporting with Extent Reports and integrated screenshots for failed test cases.
Validated the automation by executing tests on multiple Android devices/emulators.

Test Work

Info of testing in Real Device(this test conducted in real device)

FollowUp the below steps:

Mobile App Installation: Install the mobile app My Demo App APK on the real device under test.
Enable USB debugging on the real device.
Connect the device to your machine using a USB cable. Run CMD to make sure the device is connected by this command:

adb devices

Then press Enter Another Important instruction to get application location just give a command below and tap to the app and press enter immediately

adb shell dumpsys window | find "mCurrentFocus"

Picture for demonstration

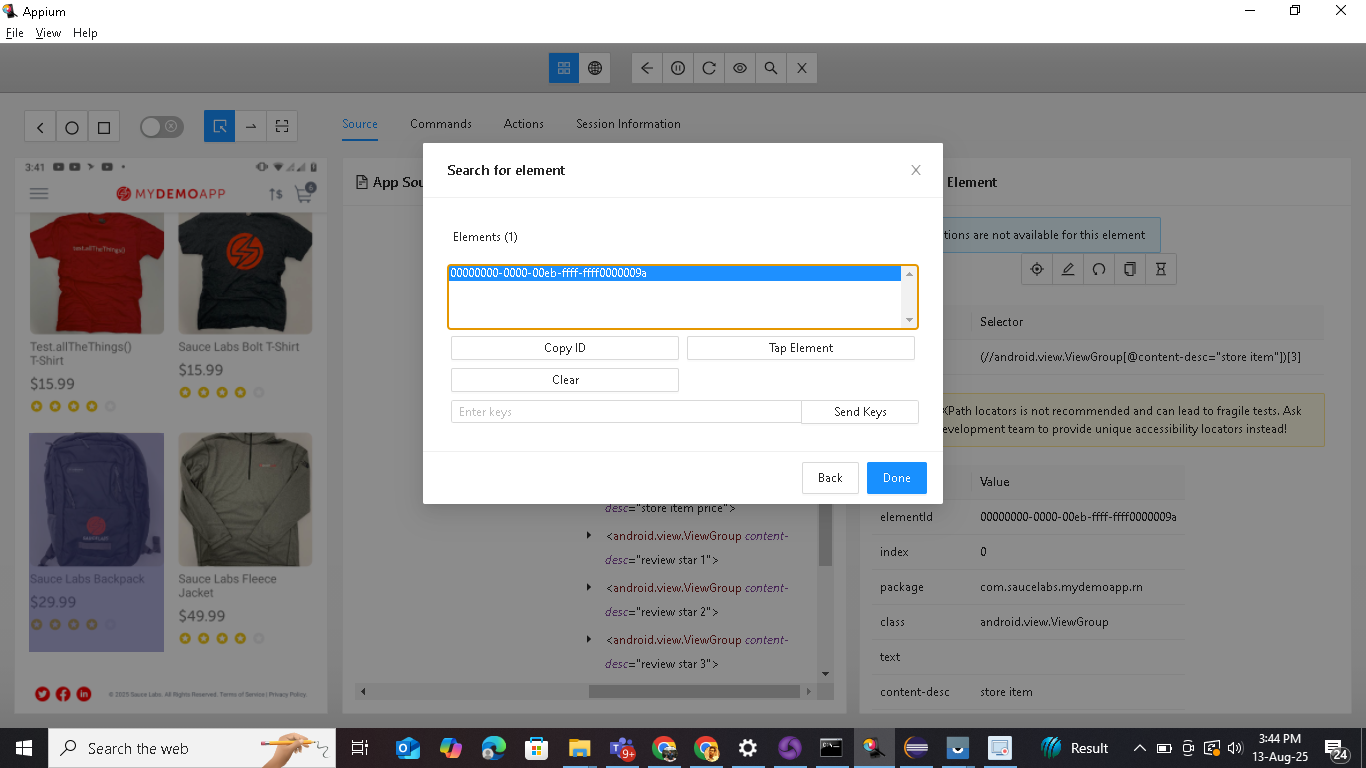

Launch Appium Server Gui and Appium Inspector from the Appium Desktop application.
Fillup Remote Path and Desired Capabilities Following from CMD: Instructions showed in image

This will help to Inspect elements of the mobile app. Picture for demonstration

Automation Part

The following instructions will help you navigate those testing pages. As I am following the page object model, I will create some packages. At the package level, there is a list of classes where you can create methods, use methods for particular pages, and run and test the testing pages separately and parallelly as well.

Set Environment
i) pom.xml [dependencies set]
ii) DriverSetup[create separate package ]
Page Object Model: create methods, using methods for separate page and create test cases of those pages
i) Driver Control/setup [package name: MobileConfig]
ii) Methods and Page objects[package name: Utilities]
iii) TestCases [package name: TestCases ]
Create Allure report
i) pom.xml [dependencies set for allure report]

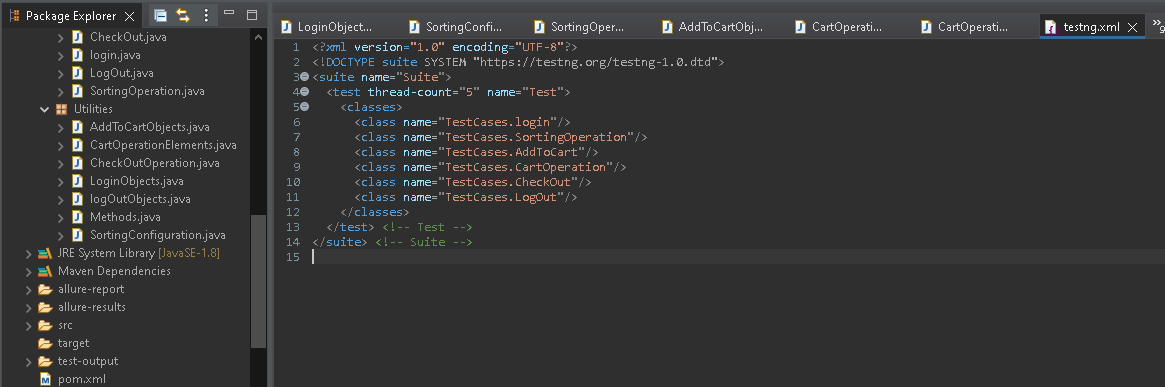

ii) Testng.xml [to run all test file togather]

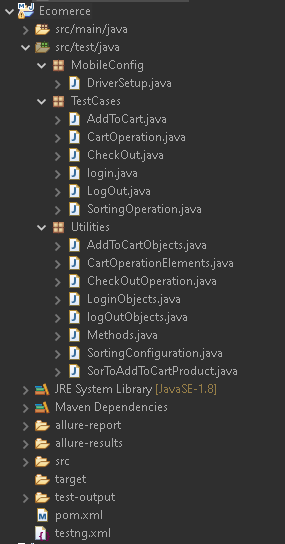

My POM Look Like:

Set Environment

Setting up dependencies on testing frameworks that will contain the testing process:
Create a Maven Project
Set pom.xml file
pom.xml file Code:
Set Under Dependencies

     <dependency>
				<groupId>org.testng</groupId>
				<artifactId>testng</artifactId>
				<version>7.5</version>
				<scope>test</scope>
		</dependency>
		<dependency>
				<groupId>org.seleniumhq.selenium</groupId>
				<artifactId>selenium-java</artifactId>
				<version>3.141.59</version>
		</dependency>
		<!--  https://mvnrepository.com/artifact/io.appium/java-client  -->
		<dependency>
				<groupId>io.appium</groupId>
				<artifactId>java-client</artifactId>
				<version>7.6.0</version>
		</dependency>
		<!--  https://mvnrepository.com/artifact/org.apache.commons/commons-lang3  -->
		<dependency>
				<groupId>org.apache.commons</groupId>
				<artifactId>commons-lang3</artifactId>
				<version>3.12.0</version>
		</dependency>
		<!--  https://mvnrepository.com/artifact/commons-io/commons-io  -->
		<dependency>
				<groupId>commons-io</groupId>
				<artifactId>commons-io</artifactId>
				<version>2.11.0</version>
		</dependency>
		<dependency>
		<!--  https://mvnrepository.com/artifact/commons-validatorcommons-validator  -->
				<groupId>commons-validator</groupId>
				<artifactId>commons-validator</artifactId>
				<version>1.7</version>
				</dependency>
		<dependency>
				<groupId>io.qameta.allure</groupId>
				<artifactId>allure-testng</artifactId>
				<version>2.19.0</version>
		</dependency>

BrowserControl/Setup

Create MobileConfig class under Package
The package will hold DriverSetup in which we run the automation Code Inside DriverSetup Class:
MobileConfig.DriverSetup class is responsible for setting up and configuring the Appium AndroidDriver

for mobile automation testing. It includes methods annotated with @BeforeSuite and @AfterSuite to be executed
before and after the entire test suite, respectively.
"I prefer to connect my real device for test run to avoid emulator latency"

package MobileConfig;

import java.net.MalformedURLException;
import java.net.URL;
import java.util.concurrent.TimeUnit;

import org.openqa.selenium.remote.DesiredCapabilities;
import org.testng.annotations.AfterSuite;
import org.testng.annotations.BeforeSuite;

import io.appium.java_client.android.AndroidDriver;
import io.appium.java_client.android.AndroidElement;

public class DriverSetup {
	public static AndroidDriver<AndroidElement> driver;
	@BeforeSuite
	public void SetupDriver() throws MalformedURLException{
		 DesiredCapabilities desiredCapabilities = new DesiredCapabilities();
		 desiredCapabilities.setCapability("platformName", "Android");
		 desiredCapabilities.setCapability("appium:appPackage", "com.saucelabs.mydemoapp.rn");
		 desiredCapabilities.setCapability("appium:appActivity", "com.saucelabs.mydemoapp.rn.MainActivity");
		 URL remoteUrl = new URL("http://127.0.0.1:4723/wd/hub");


		 driver = new AndroidDriver<AndroidElement>(remoteUrl, desiredCapabilities);
		 driver.manage().timeouts().implicitlyWait(20, TimeUnit.SECONDS);
	}
	@AfterSuite
	public void quitDriver() {
		driver.quit();
	}
}

Page Object model

Methods

Create a package that includes methods and Methods make it easier to implement parallel testing. My method page contains methods that cover more test scenarios in less time.

Methods and Usages:

To retrieves a single AndroidElement based on the specified locator (By object).

public AndroidElement getElement(By locator) {
		return driver.findElement(locator);
	}

To finds an element using the specified locator and performs a click action on it.

public void clickElement(By locator) {
		getElement(locator).click();
	}

To finds an element using the specified locator and enters the provided text into the input field.

public void FieldValue(By locator,String text) {
		getElement(locator).sendKeys(text);
	}

To waits for the visibility of the element identified by the specified locator.

public void WaitElementVisible(By locator) {
		new WebDriverWait(driver, 30).until(ExpectedConditions.visibilityOfElementLocated(locator));

	}

To performs a scrolling action from one point to another on the mobile device screen.

public void Scrolling(int p1, int p2, int m1, int m2){
		(new TouchAction<>(driver))
		  .press(PointOption.point(p1, p2)).waitAction()
		  .moveTo(PointOption.point(m1, m2))
		  .release()
		  .perform();
	}

To perform ScreenShot for Allure report to track desire testing screen location

public void takeScreenshot(String name) {
		Allure.addAttachment(name, new ByteArrayInputStream(((TakesScreenshot)driver).getScreenshotAs(OutputType.BYTES)));
	}

Combind Picture of My Methods:

Scenario Replication Classes

Targeted Scenario: Customer Login Procedure

PackageName: Utilities
ClassName: LoginObjects
Overview of this class:

The LoginObjects class contains the locators and methods necessary to perform the customer login procedure in a mobile application.
This class extends the Methods class, inheriting reusable utilities for interacting with mobile elements.
The login procedure involves accessing the menu, selecting the login option, entering valid credentials, and clicking the login button to authenticate.

Here, I build a class that has the xpaths and IDs required to produce scenarios.
"Those elements’ XPaths and IDs are inherited or captured from Appium Inspector."

package Utilities;

import org.openqa.selenium.By;

public class LoginObjects extends Methods {
	public By Menubar_c = By.xpath("//android.view.ViewGroup[@content-desc=\"open menu\"]");
	public By login_w_c = By.xpath("//android.view.ViewGroup[@content-desc=\"menu item log in\"]");
	public By Username_in = By.xpath("//android.widget.EditText[@content-desc=\"Username input field\"]");// bob@example.com
	public By Pass_in = By.xpath("//android.widget.EditText[@content-desc=\"Password input field\"]");//10203040
	public By LoginButton_c = By.xpath("//android.view.ViewGroup[@content-desc=\"Login button\"]");

	public void Login() throws InterruptedException {
		clickElement(Menubar_c);
		WaitElementVisible(login_w_c);
		clickElement(login_w_c);
		Thread.sleep(2000);
		FieldValue(Username_in, "bob@example.com");
		FieldValue(Pass_in, "10203040");
		Thread.sleep(2000);
		clickElement(LoginButton_c);
	}
}

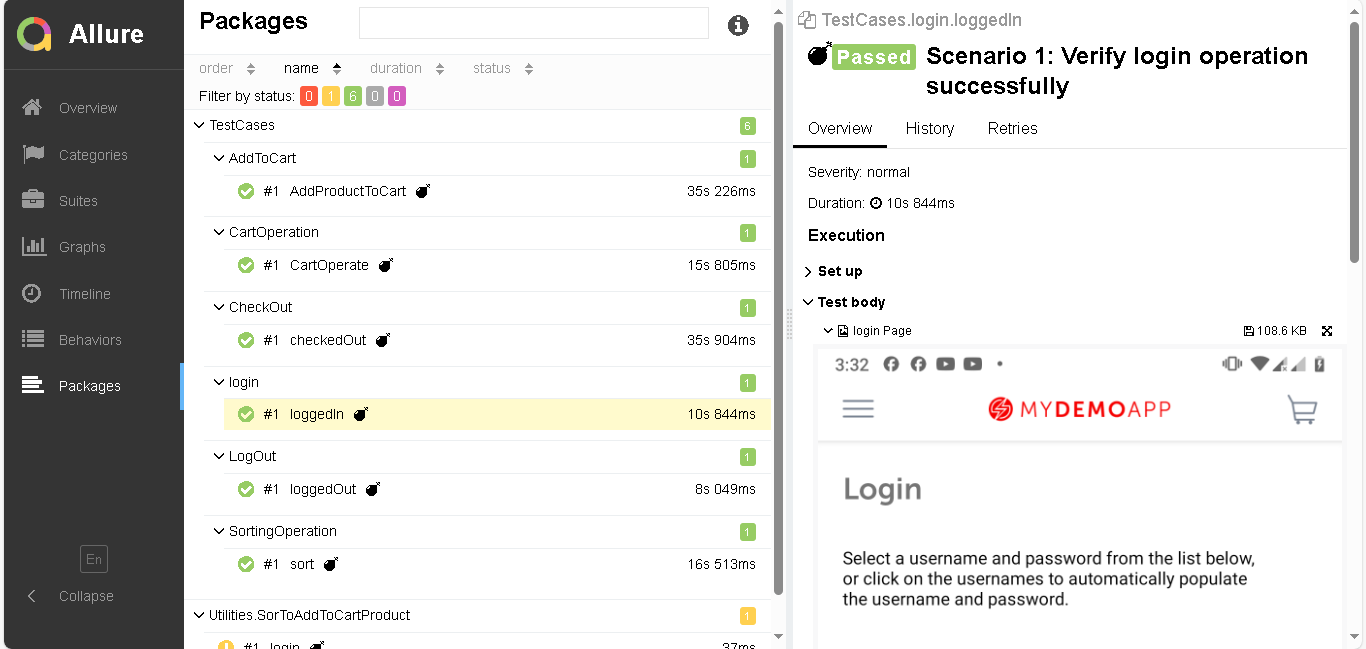

Test Run of Customer Login Procedure

PackageName: TestCases ClassName: login Overview of this TestCase class:

The test scenario is implemented in the loggedIn method, which calls the Login method from the LoginObjects class.
The Login method executes the required steps to interact with the app elements and perform the login process successfully.

package TestCases;

import org.testng.annotations.Test;
import MobileConfig.DriverSetup;
import Utilities.LoginObjects;

public class login extends DriverSetup {
	LoginObjects logg = new LoginObjects();

	@Test(description = "Scenario 1: Verify login operation successfully\r\n"
			+ "\r\n"
			+ "Given: Bob is on the home page after opening the mobile app\r\n"
			+ "When: Bob opens the menu and selects the login option\r\n"
			+ "And: Bob enters username 'bob@example.com' and password '10203040'\r\n"
			+ "Then: Bob clicks the login button and successfully logs in")
	public void loggedIn() throws InterruptedException {
		logg.Login();
	}
}

Targeted Scenario: Product Sorting Procedure

PackageName: Utilities ClassName: SortingConfiguration Overview of this class:

The SortingConfiguration class contains the locators and methods needed to perform product sorting in the mobile application.
This class extends the Methods class, inheriting common interaction utilities for mobile elements.
The sorting procedure includes opening the sort menu, selecting Name (Descending) order, then selecting Price (Ascending) order to verify sorting functionalities.

Here, I build a class that has the XPaths required to produce scenarios. "Those elements’ XPaths are inherited or captured from Appium Inspector."

package Utilities;

import org.openqa.selenium.By;

public class SortingConfiguration extends Methods {
	public By Sortingoption_c = By.xpath("//android.view.ViewGroup[@content-desc=\"sort button\"]");
	public By SortByNameDescendingOrder_c = By.xpath("//android.view.ViewGroup[@content-desc=\"nameDesc\"]");
	public By SortByPriceAscendingOrder_c = By.xpath("//android.view.ViewGroup[@content-desc=\"priceAsc\"]");

	public void Sorting() throws InterruptedException {
		Thread.sleep(2000);
		clickElement(Sortingoption_c);
		Thread.sleep(2000);
		clickElement(SortByNameDescendingOrder_c);
		Thread.sleep(2000);
		clickElement(Sortingoption_c);
		Thread.sleep(2000);
		clickElement(SortByPriceAscendingOrder_c);
		Thread.sleep(2000);
	}
}

Test Run of Product Sorting Procedure

PackageName: TestCases ClassName: SortingOperation Overview of this TestCase class:

The test scenario is implemented in the sort method, which calls the Sorting method from the SortingConfiguration class.
The Sorting method performs the steps to sort products first by Name (Descending) and then by Price (Ascending) in the catalog dashboard.

package TestCases;

import org.testng.annotations.Test;
import MobileConfig.DriverSetup;
import Utilities.SortingConfiguration;

public class SortingOperation extends DriverSetup {

	login lg = new login(); // parallel run placeholder
	AddToCart ac = new AddToCart(); // parallel run placeholder
	CartOperation CO = new CartOperation(); // parallel run placeholder
	CheckOut cout = new CheckOut(); // parallel run placeholder
	LogOut LoggedOut = new LogOut(); // parallel run placeholder
	SortingConfiguration sort = new SortingConfiguration();

	@Test(description = "Scenario 2: Verify Catalog Dashboard appears\r\n"
			+ "Scenario 3: Verify 'Sort By Name' functionality\r\n"
			+ "Scenario 4: Verify 'Sort By Price' functionality")
	public void sort() throws InterruptedException {
		//lg.loggedIn();
		sort.Sorting();
		//ac.AddProductToCart();
		//CO.CartOperate();
		//cout.checkedOut();
		//LoggedOut.loggedOut();
	}
}

Targeted Scenario: Add Multiple Products to Cart Procedure

PackageName: Utilities ClassName: AddToCartObjects Overview of this class:

The AddToCartObjects class contains the locators and methods needed to automate adding multiple products to the shopping cart in the mobile application.
This class extends the Methods class, inheriting reusable functions for element interaction, waiting, scrolling, and screenshot capture.
The procedure covers selecting products from the catalog dashboard, adjusting their quantities, and adding them to the cart one by one.

Here, I build a class that has the XPaths required to produce scenarios. "Those elements’ XPaths are inherited or captured from Appium Inspector."

package Utilities;

import org.openqa.selenium.By;

public class AddToCartObjects extends Methods {

	// Second product elements
	public By secondProduct_c = By.xpath("(//android.view.ViewGroup[@content-desc=\"store item\"])[2]");
	public By secondProductDashbord_w = By.xpath("//android.view.ViewGroup[@content-desc=\"Add To Cart button\"]");
	public By QuantityaddButton_c = By.xpath("//android.view.ViewGroup[@content-desc=\"counter plus button\"]");
	public By AddToCart_c = By.xpath("//android.view.ViewGroup[@content-desc=\"Add To Cart button\"]");

	public By Menubar_c = By.xpath("//android.view.ViewGroup[@content-desc=\"open menu\"]");
	public By catalogDashbord_c = By.xpath("//android.view.ViewGroup[@content-desc=\"menu item catalog\"]");

	// Third product elements
	public By ThirdProduct_c = By.xpath("(//android.view.ViewGroup[@content-desc=\"store item\"])[3]");
	public By ThirdProductDashbord_w = By.xpath("//android.view.ViewGroup[@content-desc=\"Add To Cart button\"]");

	// Fifth product elements
	public By FifthProduct_c = By.xpath("(//android.view.ViewGroup[@content-desc=\"store item\"])[3]");
	public By FifthProductDashbord_w = By.xpath("//android.view.ViewGroup[@content-desc=\"Add To Cart button\"]");

	public void addTocart(int productquantity_p1, int productquantity_p2) throws InterruptedException {
		takeScreenshot("Product Catalog");

		// Second product
		clickElement(secondProduct_c);
		WaitElementVisible(secondProductDashbord_w);
		for (int i = 1; i < productquantity_p1; i++) {
			clickElement(QuantityaddButton_c);
		}
		takeScreenshot("Quantity added for 2nd product");
		clickElement(AddToCart_c);
		Thread.sleep(2000);
		clickElement(Menubar_c);
		Thread.sleep(2000);
		clickElement(catalogDashbord_c);

		// Third product
		clickElement(ThirdProduct_c);
		WaitElementVisible(ThirdProductDashbord_w);
		for (int i = 1; i < productquantity_p2; i++) {
			clickElement(QuantityaddButton_c);
		}
		takeScreenshot("Quantity added for 3rd product");
		clickElement(AddToCart_c);
		Thread.sleep(2000);
		clickElement(Menubar_c);
		Thread.sleep(2000);
		clickElement(catalogDashbord_c);

		// Fifth product
		Thread.sleep(2000);
		Scrolling(389, 1789, 774, 285);
		clickElement(FifthProduct_c);
		WaitElementVisible(FifthProductDashbord_w);
		takeScreenshot("Quantity added for 5th product");
		clickElement(AddToCart_c);
		Thread.sleep(2000);
		clickElement(Menubar_c);
		Thread.sleep(2000);
		clickElement(catalogDashbord_c);
		Thread.sleep(2000);
	}
}

Test Run of Add Multiple Products to Cart Procedure

PackageName: TestCases ClassName: AddToCart Overview of this TestCase class:

The test scenario is implemented in the AddProductToCart method, which calls the addTocart method from the AddToCartObjects class.
The addTocart method automates adding the 2nd, 3rd, and 5th products to the cart, with configurable quantities for the 2nd and 3rd products.

package TestCases;

import org.testng.annotations.Test;
import MobileConfig.DriverSetup;
import Utilities.AddToCartObjects;

public class AddToCart extends DriverSetup {
	AddToCartObjects addcart = new AddToCartObjects();

	@Test(description = "Scenario 5 to 7: Verify products are correctly added to the cart queue")
	public void AddProductToCart() throws InterruptedException {
		// first parameter = quantity for 2nd product, second parameter = quantity for 3rd product
		addcart.addTocart(3, 2);
	}
}

Scenario Replication Classes

Targeted Scenario: Cart Page Operations Procedure

PackageName: Utilities ClassName: CartOperationElements Overview of this class:

The CartOperationElements class contains the locators and methods needed to perform operations on the cart page in the mobile application.
This class extends the Methods class, inheriting common interaction functions for clicking, waiting, scrolling, and capturing screenshots.
The procedure covers navigating to the cart, modifying product quantities, removing products, and proceeding to checkout.

Here, I build a class that has the XPaths required to produce scenarios. "Those elements’ XPaths are inherited or captured from Appium Inspector."

package Utilities;

import org.openqa.selenium.By;

public class CartOperationElements extends Methods {
	public By Carticon_c = By.xpath("//android.view.ViewGroup[@content-desc=\"cart badge\"]");
	public By CartlistPage_w = By.xpath("//android.view.ViewGroup[@content-desc=\"Proceed To Checkout button\"]");

	public By DecreseButton_1stpro_c = By.xpath("//android.view.ViewGroup[@content-desc=\"counter minus button\"]");
	public By incresButton_3rdpro_c = By.xpath("(//android.view.ViewGroup[@content-desc=\"counter plus button\"])[2]");
	public By RemoveIteam_2ndpro_c = By.xpath("(//android.view.ViewGroup[@content-desc=\"remove item\"])[1]");
	public By ProceedToCheckout_button = By.xpath("//android.view.ViewGroup[@content-desc=\"Proceed To Checkout button\"]");

	public void cartpageOperation() throws InterruptedException {
		clickElement(Carticon_c);
		WaitElementVisible(CartlistPage_w);
		Thread.sleep(2000);
		takeScreenshot("Cart Product list");
		Scrolling(650, 206, 234, 1541);
		Thread.sleep(2000);
		clickElement(DecreseButton_1stpro_c);
		Scrolling(420, 1379, 647, 389);
		clickElement(incresButton_3rdpro_c);
		clickElement(RemoveIteam_2ndpro_c);
		Thread.sleep(2000);
		takeScreenshot("Final Product list");
		clickElement(ProceedToCheckout_button);
		Thread.sleep(2000);
	}
}

Test Run of Cart Page Operations Procedure

PackageName: TestCases ClassName: CartOperation Overview of this TestCase class:

The test scenario is implemented in the CartOperate method, which calls the cartpageOperation method from the CartOperationElements class.
The cartpageOperation method performs cart modification steps such as decreasing the quantity of the 1st product, increasing the quantity of the 3rd product, removing the 2nd product, and proceeding to checkout.

package TestCases;

import org.testng.annotations.Test;
import MobileConfig.DriverSetup;
import Utilities.CartOperationElements;

public class CartOperation extends DriverSetup {

	CartOperationElements co = new CartOperationElements();

	@Test(description = "Scenario 8: Go to Cart\r\n"
			+ "Scenario 9: Decrease 1st Product\r\n"
			+ "Scenario 10: Increase 3rd Product\r\n"
			+ "Scenario 11: Delete 2nd Product\r\n"
			+ "Scenario 12: Proceed to checkout")
	public void CartOperate() throws InterruptedException {
		co.cartpageOperation();
	}
}

Targeted Scenario: Checkout Process Procedure

PackageName: Utilities ClassName: CheckOutOperation Overview of this class:

The CheckOutOperation class contains the locators and methods to automate the full checkout process in the mobile application.
This class extends the Methods class, inheriting reusable interaction utilities for waiting, clicking, filling fields, scrolling, and taking screenshots.
The procedure covers entering shipping information, proceeding to payment, filling payment details, reviewing the order, and placing it successfully.

Here, I build a class that has the XPaths required to produce scenarios. "Those elements’ XPaths are inherited or captured from Appium Inspector."

package Utilities;

import org.openqa.selenium.By;

public class CheckOutOperation extends Methods {
	public By checkoutdashbord_w = By.xpath("//android.view.ViewGroup[@content-desc=\"To Payment button\"]");
	public By Fullname_in = By.xpath("//android.widget.EditText[@content-desc=\"Full Name* input field\"]");
	public By Address_in = By.xpath("//android.widget.EditText[@content-desc=\"Address Line 1* input field\"]");
	public By city_in = By.xpath("//android.widget.EditText[@content-desc=\"City* input field\"]");
	public By ZipCode_in = By.xpath("//android.widget.EditText[@content-desc=\"Zip Code* input field\"]");
	public By Country_c = By.xpath("//android.widget.EditText[@content-desc=\"Country* input field\"]");

	public By ToProceedButton_c = By.xpath("//android.view.ViewGroup[@content-desc=\"To Payment button\"]");
	public By ReviewOrder_w = By.xpath("//android.view.ViewGroup[@content-desc=\"Review Order button\"]");
	public By CardUserName_in = By.xpath("//android.widget.EditText[@content-desc=\"Full Name* input field\"]");
	public By CardNumber_in = By.xpath("//android.widget.EditText[@content-desc=\"Card Number* input field\"]");
	public By ExparedDate_in = By.xpath("//android.widget.EditText[@content-desc=\"Expiration Date* input field\"]");
	public By SecurityCode_in = By.xpath("//android.widget.EditText[@content-desc=\"Security Code* input field\"]");
	public By ReviewOrderButton_c = By.xpath("//android.view.ViewGroup[@content-desc=\"Review Order button\"]");

	public By PlaceOrder_w_c = By.xpath("//android.view.ViewGroup[@content-desc=\"Place Order button\"]");
	public By CheckoutPage_w = By.xpath("//android.view.ViewGroup[@content-desc=\"Continue Shopping button\"]");

	public void checkout() throws InterruptedException {
		WaitElementVisible(checkoutdashbord_w);
		takeScreenshot("Checkout Dashbord");
		Scrolling(461, 1445, 650, 347);
		Thread.sleep(2000);
		FieldValue(Fullname_in, "Sakif");
		FieldValue(Address_in, "Dhanmondi");
		FieldValue(city_in, "Dhaka");
		Thread.sleep(2000);
		FieldValue(ZipCode_in, "1209");
		FieldValue(Country_c, "Bangladesh");
		takeScreenshot("Check out informations");
		Thread.sleep(2000);
		clickElement(ToProceedButton_c);
		clickElement(ReviewOrder_w);
		takeScreenshot("Payment Information Dashbord");
		FieldValue(CardUserName_in, "Sakif");
		FieldValue(CardNumber_in, "3432234356567878");
		FieldValue(ExparedDate_in, "12/25");
		FieldValue(SecurityCode_in, "123");
		Thread.sleep(2000);
		takeScreenshot("Payment Information Taken");
		clickElement(ReviewOrderButton_c);
		Thread.sleep(2000);
		clickElement(ReviewOrderButton_c);

		WaitElementVisible(PlaceOrder_w_c);
		takeScreenshot("Checkout Page");
		Thread.sleep(2000);
		clickElement(PlaceOrder_w_c);
		WaitElementVisible(CheckoutPage_w);
		Thread.sleep(2000);
		takeScreenshot("Checkout Ended");
	}
}

Test Run of Checkout Process Procedure

PackageName: TestCases ClassName: CheckOut Overview of this TestCase class:

The test scenario is implemented in the checkedOut method, which calls the checkout method from the CheckOutOperation class.
The checkout method executes the complete checkout workflow, including verifying checkout information, payment information, and placing the order successfully.

package TestCases;

import org.testng.annotations.Test;
import MobileConfig.DriverSetup;
import Utilities.CheckOutOperation;

public class CheckOut extends DriverSetup {
	CheckOutOperation cop = new CheckOutOperation();

	@Test(description = "Scenario 13: Checkout process\r\n"
			+ "1. Verify checkout information is taken correctly\r\n"
			+ "2. Verify payment information is taken correctly\r\n"
			+ "3. Verify place order successfully")
	public void checkedOut() throws InterruptedException {
		cop.checkout();
	}
}

Targeted Scenario: Customer Logout Procedure

PackageName: Utilities ClassName: logOutObjects Overview of this class:

The logOutObjects class contains the locators and methods to automate the logout process in the mobile application.
This class extends the Methods class, inheriting reusable utilities for element interaction, waiting, and capturing screenshots.
The logout procedure involves opening the menu, selecting the logout option, confirming the logout action, and verifying the success message.

Here, I build a class that has the XPaths required to produce scenarios. "Those elements’ XPaths are inherited or captured from Appium Inspector."

package Utilities;

import org.openqa.selenium.By;
import org.testng.annotations.Test;

public class logOutObjects extends Methods {
	public By Menubar_c = By.xpath("//android.view.ViewGroup[@content-desc=\"open menu\"]");
	public By logout_c = By.xpath("//android.view.ViewGroup[@content-desc=\"menu item log out\"]");
	public By LogoutPop_accept = By.xpath("/hierarchy/android.widget.FrameLayout/android.widget.FrameLayout/android.widget.FrameLayout/android.widget.LinearLayout/android.widget.ScrollView/android.widget.LinearLayout/android.widget.Button[2]");

	@Test(description = "Scenario 14: Verify Logout")
	public void logout() throws InterruptedException {
		clickElement(Menubar_c);
		Thread.sleep(2000);
		takeScreenshot("logout");
		clickElement(logout_c);
		Thread.sleep(2000);
		clickElement(LogoutPop_accept);
		Thread.sleep(2000);
		takeScreenshot("logout Successful Message");
	}
}

Test Run of Customer Logout Procedure

PackageName: TestCases ClassName: LogOut Overview of this TestCase class:

The test scenario is implemented in the loggedOut method, which calls the logout method from the logOutObjects class.
The logout method executes all steps required to log out of the application and confirm the action.

package TestCases;

import org.testng.annotations.Test;
import MobileConfig.DriverSetup;
import Utilities.logOutObjects;

public class LogOut extends DriverSetup {
	logOutObjects lgot = new logOutObjects();

	@Test(description = "Scenario 14: Verify Logout")
	public void loggedOut() throws InterruptedException {
		lgot.logout();
	}
}

Allure Report Creation

To create an allure report, first set dependency in the pom.xml file.

        <dependency>
				<groupId>io.qameta.allure</groupId>
				<artifactId>allure-testng</artifactId>
				<version>2.19.0</version>
		</dependency>

Create some methods for allure report (like allure ScreenShot) which is added already

public void takeScreenshot(String name) {
		Allure.addAttachment(name, new ByteArrayInputStream(((TakesScreenshot)getDriver()).getScreenshotAs(OutputType.BYTES)));
	}

then run the testing.xml file
then refresh the whole package and see a "allure-results" file created under Maven Dependencies
-after runing the testng.xml file and refresh the whole package allure reasult appear
Terminal image:
To get allure report open the whole package terminal
then write in terminal to clean previous files>

allure generate ./allure-results --clean

then write in terminal to create allure report>

allure open ./allure-report

terminal gives us http to show us an allure report file directory

📝 Allure Report Overview

Allure reporting provides a detailed and interactive view of the automation test results, including pass/fail status, screenshots, execution graphs, and step-by-step descriptions for each scenario. Below are highlights from the latest Allure report:

Live Allure Report:
View Full Report

📊 Allure Report Samples

Report Dashboard Overview

Main dashboard showing test status and summary.

Pass/Fail Graph

Graphical view of passed and failed test cases.

🖼️ Scenario Screenshots

Login Operation

Screenshot of login test execution.

Product Sorting

Validation of sorting functionality.

Cart to Proceed

Adding product to cart and proceeding.

Checkout Flow

Checkout and payment validation.

Logout Operation

User logout process.

🗂️ Allure Report Features

Step-by-step execution details with screenshots for each step.
Test status indicators: Passed, Failed, Skipped.
Error tracebacks and logs for failed cases.
Visual graphs for test distribution and trends.
Easy navigation between scenarios and steps.

For complete details and interactive test results, visit the Allure report.

Name		Name	Last commit message	Last commit date
Latest commit History 10 Commits
.settings		.settings
allure-report		allure-report
allure-results		allure-results
src		src
target		target
test-output		test-output
.classpath		.classpath
.project		.project
README.md		README.md
pom.xml		pom.xml
testng.xml		testng.xml

Folders and files

Latest commit

History

Repository files navigation

Mobile App Automation

Target/Goals

Customer Shopping Procedure

Customer Cart & Checkout Procedure

✨ Key Features

🧩 Technology Stack

📋 Overview

🚀 Getting Started

1. Prerequisites

2. Installation

3. Appium Server Setup

4. Execution

📦 Project Structure

🧠 My Thought Process

🛠 Approach and Methodology

📋 Steps Taken to Complete the Tasks

Test Work

Info of testing in Real Device(this test conducted in real device)

FollowUp the below steps:

Automation Part

Set Environment

BrowserControl/Setup

Page Object model

Methods

Methods and Usages:

Scenario Replication Classes

Targeted Scenario: Customer Login Procedure

Test Run of Customer Login Procedure

Targeted Scenario: Product Sorting Procedure

Test Run of Product Sorting Procedure

Targeted Scenario: Add Multiple Products to Cart Procedure

Test Run of Add Multiple Products to Cart Procedure

Scenario Replication Classes

Targeted Scenario: Cart Page Operations Procedure

Test Run of Cart Page Operations Procedure

Targeted Scenario: Checkout Process Procedure

Test Run of Checkout Process Procedure

Targeted Scenario: Customer Logout Procedure

Test Run of Customer Logout Procedure

Allure Report Creation

📝 Allure Report Overview

📊 Allure Report Samples

Report Dashboard Overview

Pass/Fail Graph

🖼️ Scenario Screenshots

Login Operation

Product Sorting

Cart to Proceed

Checkout Flow

Logout Operation

🗂️ Allure Report Features

About

Topics

Resources

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Packages
