E3DC.NET

A .NET 10 library for communicating with E3DC S10 home battery systems via the proprietary RSCP (Remote Storage Control Protocol) over TCP. Includes a full-featured sample dashboard application.

Overview

• Binary RSCP protocol implementation — framing, CRC32, Rijndael-256 encryption
• Akka.Streams-based reactive data pipeline with automatic reconnection
• Typed snapshot API covering all major RSCP namespaces: EMS, BAT, PVI, PM, DCDC, EP, WB, DB, INFO
• Sample web dashboard demonstrating real-time monitoring, history queries, live tag exploration, and protocol-level request building

Features

• Protocol layer — full binary framing, CRC32 validation, Rijndael-256 AES-compatible encryption
• Fluent request builder — type-safe tag descriptors for every RSCP namespace
• Typed snapshots — EmsPowerSnapshot, BatterySnapshot, InverterSnapshot, PowerMeterSnapshot, DcdcSnapshot, EpSnapshot, WallboxSnapshot, and more
• Reactive pipeline — Akka.Streams source with automatic TCP reconnection and backpressure
• Tiered polling — fast (2 s), medium (10 s), and startup tiers with demand-driven activation

Dashboard Sample

A four-tab web dashboard demonstrating end-to-end usage of the connector.

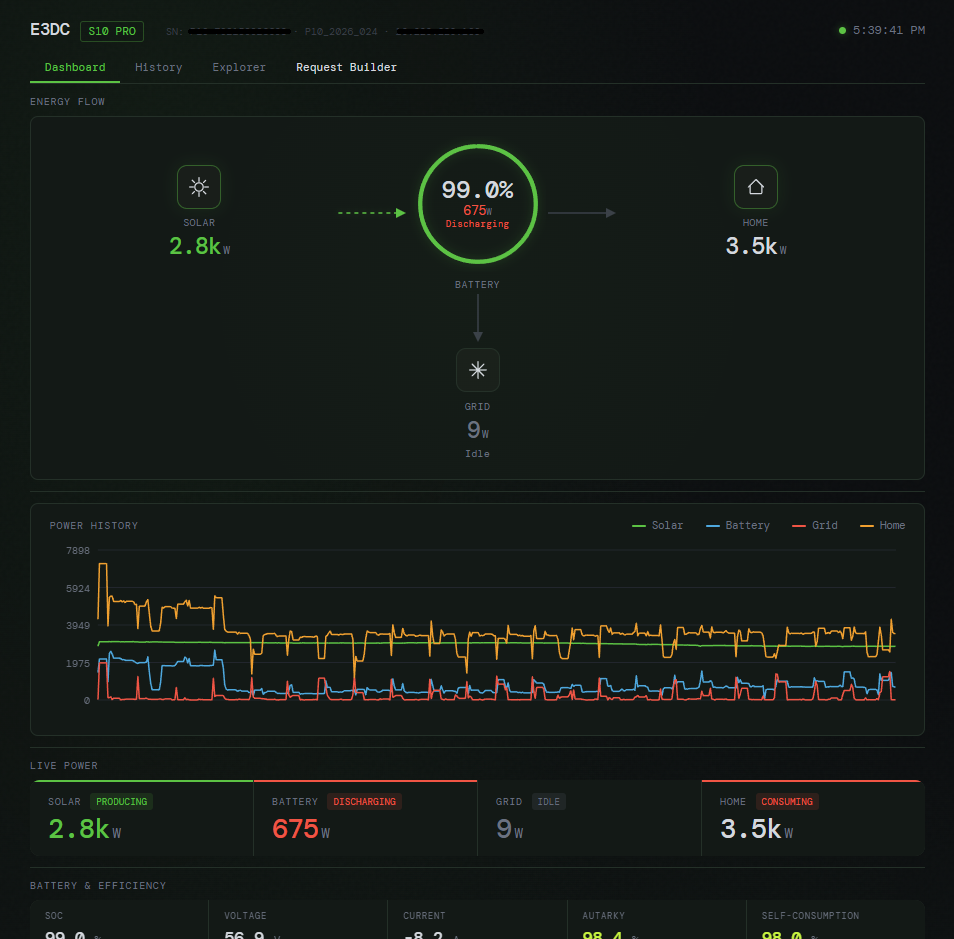

Dashboard

Real-time energy flow schematic, scrollable power history chart, live KPI tiles, and detailed status panels for battery, inverter, power meter, DCDC converter, emergency power, and wallbox.

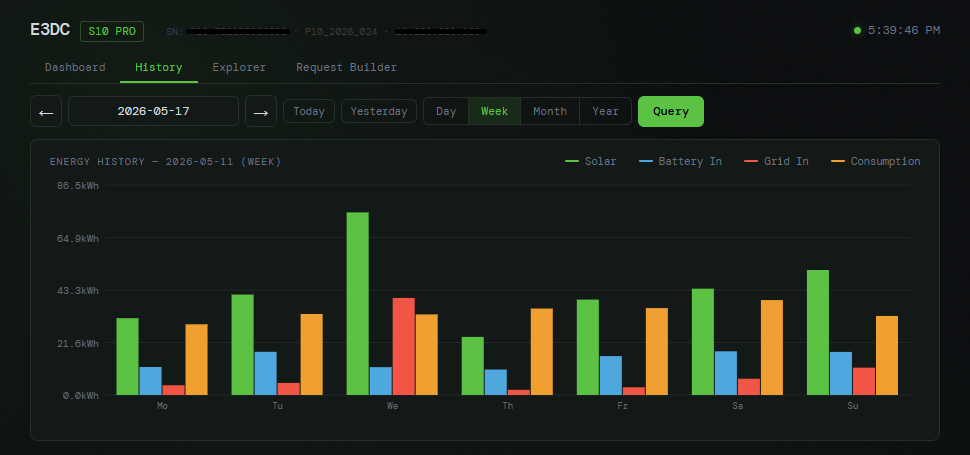

History

Query E3DC on-device stored data across day, week, month, and year resolutions. Results are displayed as bar charts.

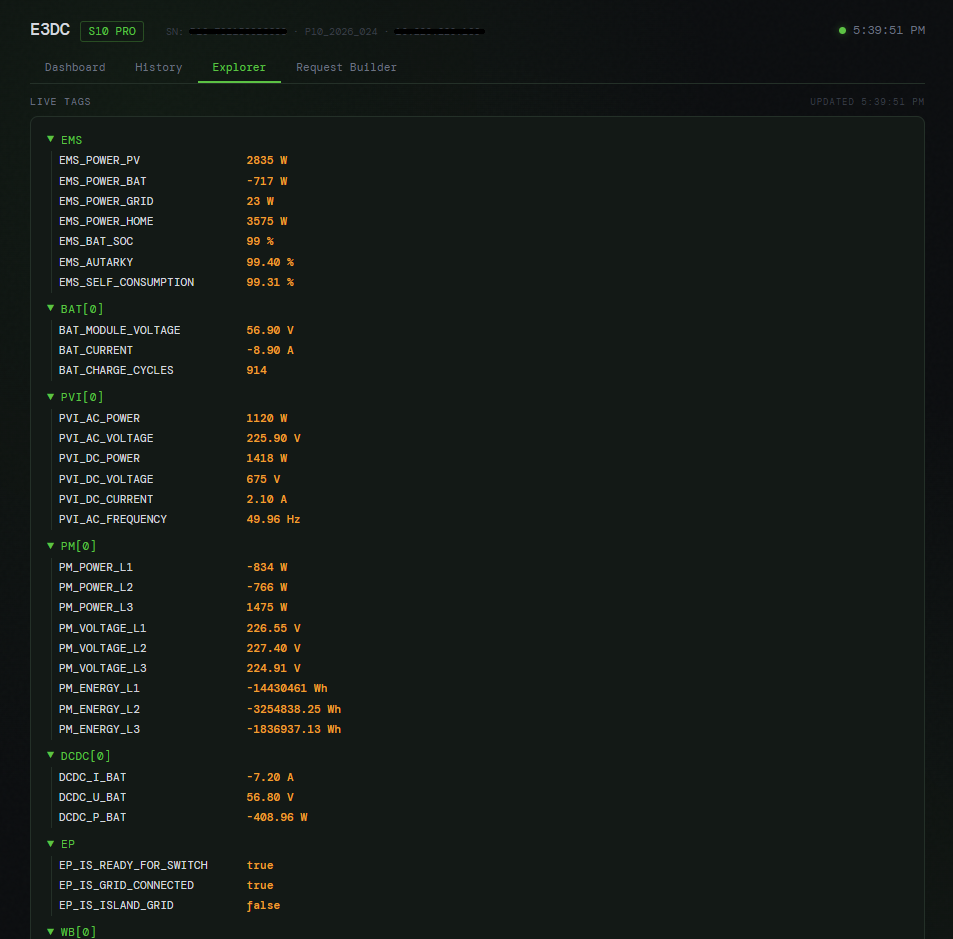

Explorer

Live tag tree showing every polled RSCP tag with its current value — useful for discovering what your device exposes.

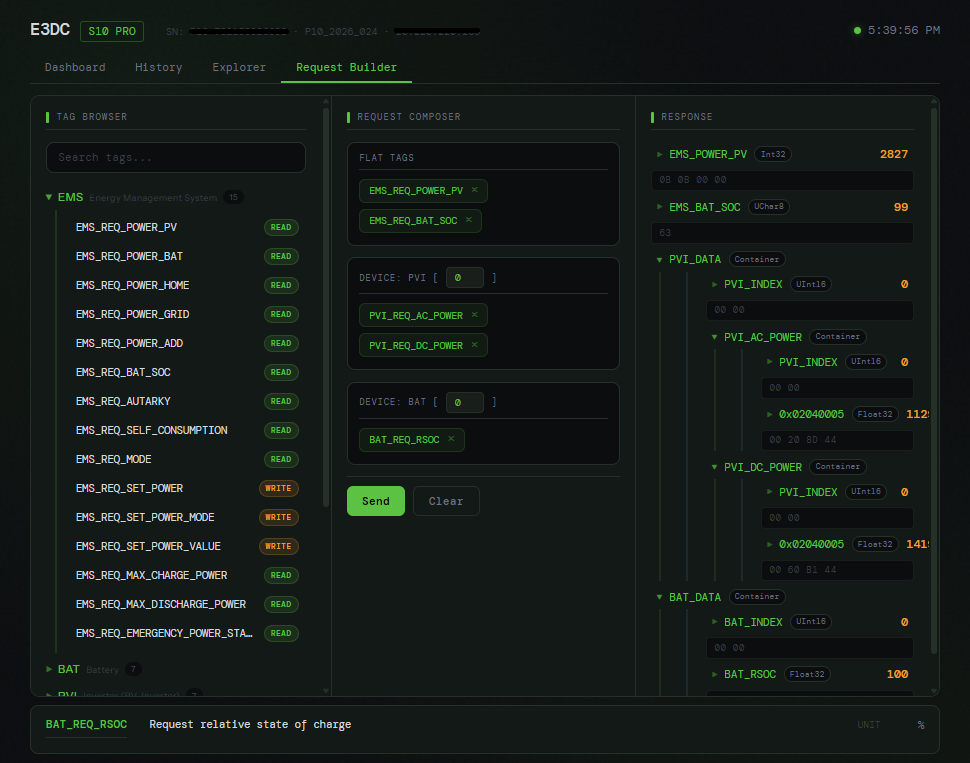

Request Builder

Three-panel RSCP protocol workbench: tag browser, request composer, and raw response viewer. Lets you craft arbitrary RSCP requests and inspect the parsed response.

Quick Start

# Clone
git clone https://github.com/Leberkas-org/e3dc.net.git
cd e3dc.net

# Configure — fill in your E3DC credentials
# Edit samples/E3dc.Net.Dashboard/appsettings.json

# Run
dotnet run --project samples/E3dc.Net.Dashboard

# Or with Docker
cd samples && docker compose up -d --build

Project Structure

src/
  E3dc.Net/              Core RSCP protocol library (framing, encryption, request builder, typed snapshots)
samples/
  E3dc.Net.Dashboard/    Full web dashboard application
docs/                         VitePress documentation site
test/
  E3dc.Net.Tests/        Unit tests

Configuration

Edit samples/E3dc.Net.Dashboard/appsettings.json:

{
  "E3DC": {
    "Host": "192.168.1.100",
    "User": "",
    "Password": "",
    "RscpKey": "",
    "FastPollingIntervalSeconds": 2,
    "MediumPollingIntervalSeconds": 10,
    "HistoryRetentionMinutes": 60,
    "BatDeviceIndex": 0,
    "PviDeviceIndex": 0,
    "PmDeviceIndex": 6,
    "DcdcDeviceIndex": 0,
    "WbDeviceIndex": 0
  }
}

Field	Description
Host	IP address of the E3DC S10 on your local network
User / Password	E3DC portal credentials
RscpKey	RSCP encryption key set in the E3DC device settings
*DeviceIndex	Zero-based device indices (check your installation; PM default is 6)

Documentation

📖 e3dc.leberkas.org

License

MIT
