Introduction

In this step-by-step illustrated tutorial, you'll learn the basics of OpenCount:

• Creating and configuring projects
• Grouping ballots by style
• Annotating each ballot style
• Interpreting ballots
• Generating Cast Vote Records (CVRs)

First, you will need to install OpenCount onto your system. Please visit InstallNotes for instructions on how to do so.

The Dataset

The election dataset that we will be processing for the tutorials are a set of Hart ballots that have been artificially marked using an image editing software. They can be found in the repository at:

opencount/test-ballots/tutorial_dataset/votedballots/

This dataset happens to consist of double-sided ballots, and two different ballot styles are present (groupA and groupB).

Basic OpenCount Interface

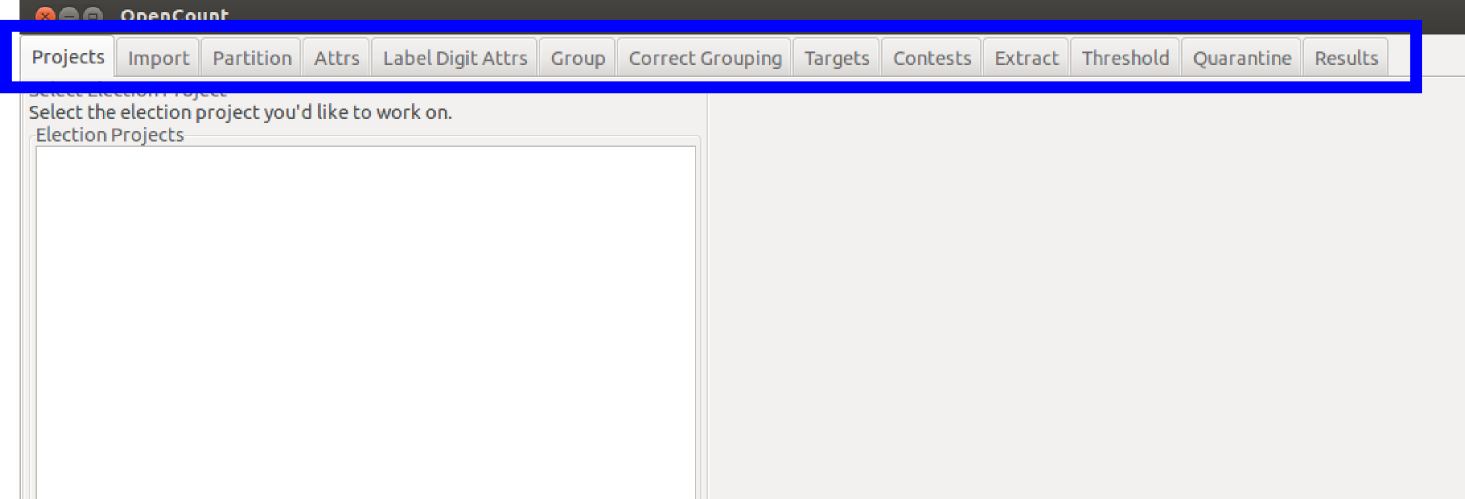

The overarching OpenCount interface is quite simple. The most important component is the top menu bar, outlined below:

Here are all of the steps of the OpenCount pipeline, laid out in order. To move to a step, simply click on the corresponding tab.

Note: Currently, OpenCount may not work correctly if you go back to a previous step, makes some changes, and move forward again. To be safe, if you want to make changes to a previous step, do the following:

• Exit OpenCount
• Re-open the project, and skip to the step you want to modify
• Make the desired changes, and then proceed as normal.

Creating the Project

First, run OpenCount from the terminal by moving to the opencount/opencount/ directory, and entering:

$ python maingui.py

Assuming that all dependencies have been correctly installed, the user interface should be displayed.

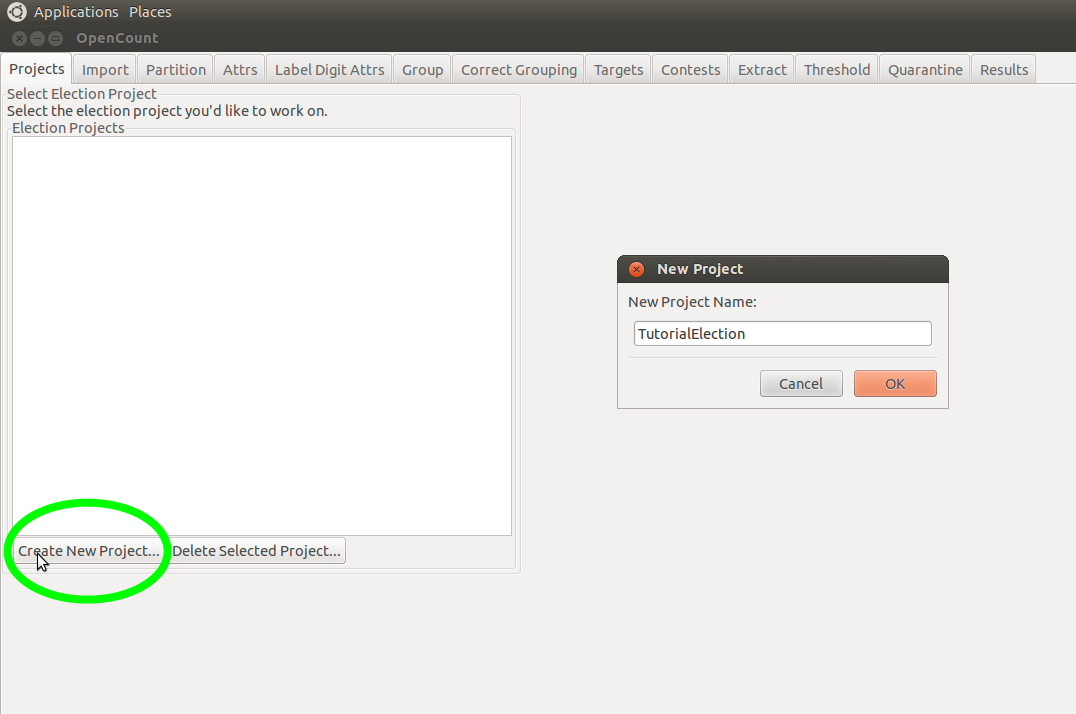

First, you will want to create and name the project for this election. Click the Create New Project... button, and enter a name (for instance, TutorialElection):

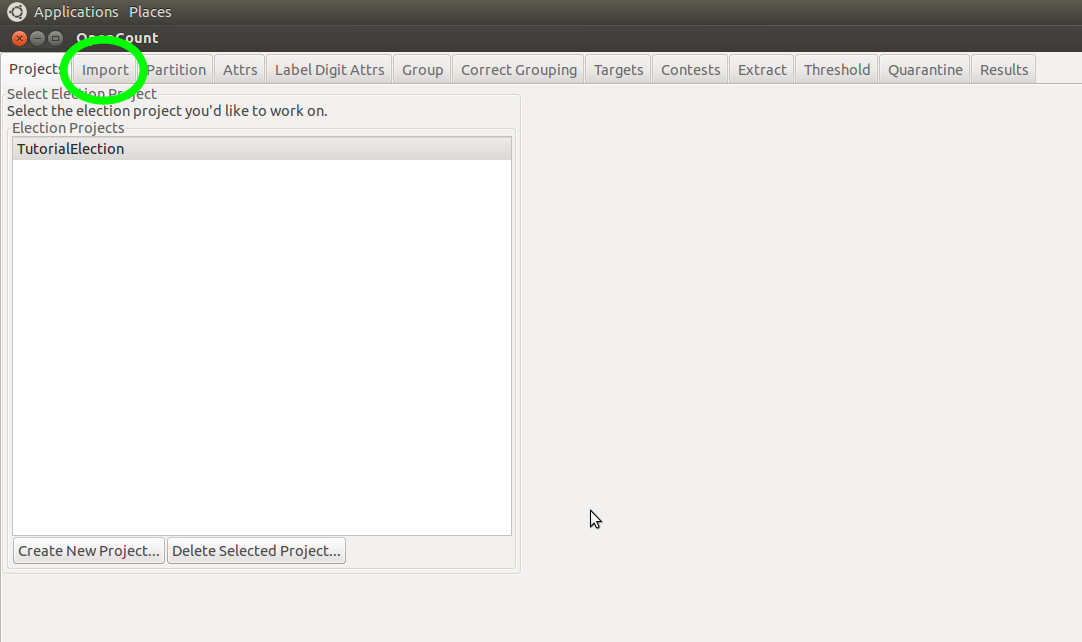

Once you have created the project, it will show up on the list of projects. You may create and delete projects, but beware: deleting a project is final and irreversible. Don't worry, deleting a project will not delete the voted ballots.

Select your newly-created project from the list, and continue to the next step by clicking the Import tab from the top menu.

Configuring the Project

Next, we will tell OpenCount the characteristics of the election, including:

• Where the voted ballot images reside
• How many sides are on each ballot (i.e., single-sided, double-sided, etc.)
• Vendor

First, select the `Choose voted ballot directory...' button, and show OpenCount the directory of voted ballots.

Next, this election consists of double-sided ballots. So, we can leave the Number of pages as 2.

In this next component Ballot Grouping/Pairing Configuration, we need to tell OpenCount how to pair up the individual images in the voted ballot directory into ballots. Recall that each side of the ballot consists of separate images. For instance, if we take a look at the groupA/ directory, the image filenames are:

• A_00_side0.png
• A_00_side1.png
• A_01_side0.png
• A_01_side1.png
• A_02_side0.png
• A_02_side1.png

In this case, the ballot pairing is determined by simply pairing consecutive ballots. Note that OpenCount does not require that the order of the filenames dictate "front" and "back".

Thus, under the Ballot Grouping/Pairing Configuration, you will check the Ballots alternate front and back box.

Finally, the Vendor in this election is Hart. So, choose the Hart entry in the dropdown menu.

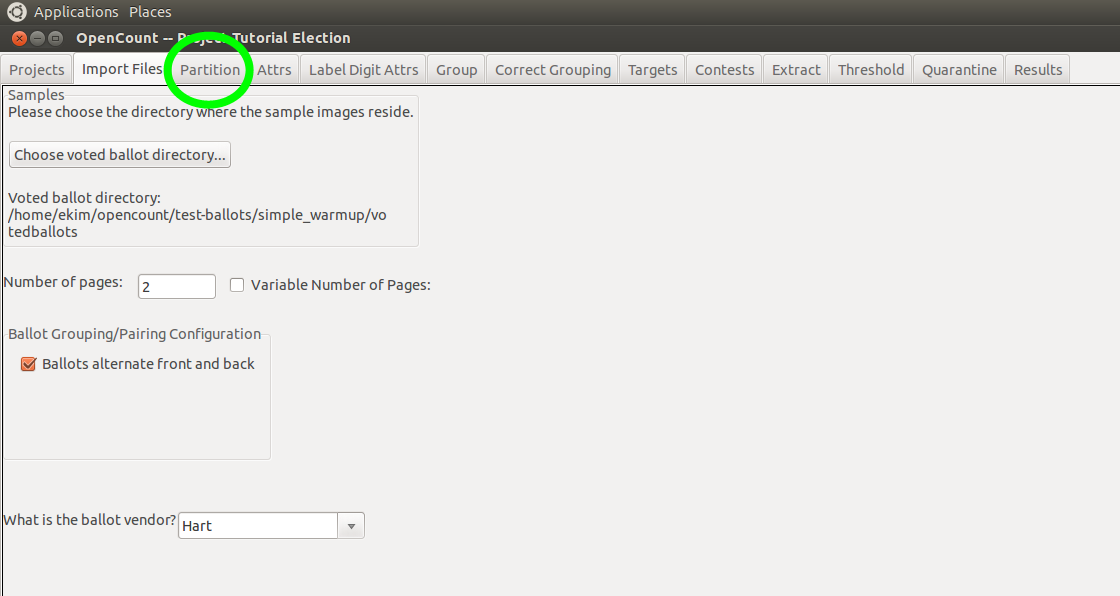

Your screen should now look like this:

Move onto the next step by clicking the Partition tab at the top menu.

Decoding Ballots

In this step, we will decode the barcodes present on each ballot, and group the ballots by style.

To start this process, simply press the Run Partitioning... button. Depending on how large the election is, this may take several hours. But on this election dataset, it should complete in a few seconds.

For this tutorial, we will skip the Move onto the next step by clicking the Select Voting Targets tab at the top menu. For this tutorial, we will skip the steps concerning Ballot Attributes.

Ballot Attributes

In this first tutorial, we will skip ballot attributes to keep things simple. After you have completed this tutorial, feel free to check out the tutorials covering attributes here:

• Precinct-stamp decoding
• Generic ballot attributes (tally group, etc.)

Ballot Annotation

In this step, we will annotate each ballot style with the following information:

• Location of voting targets and contests
• Contest text information

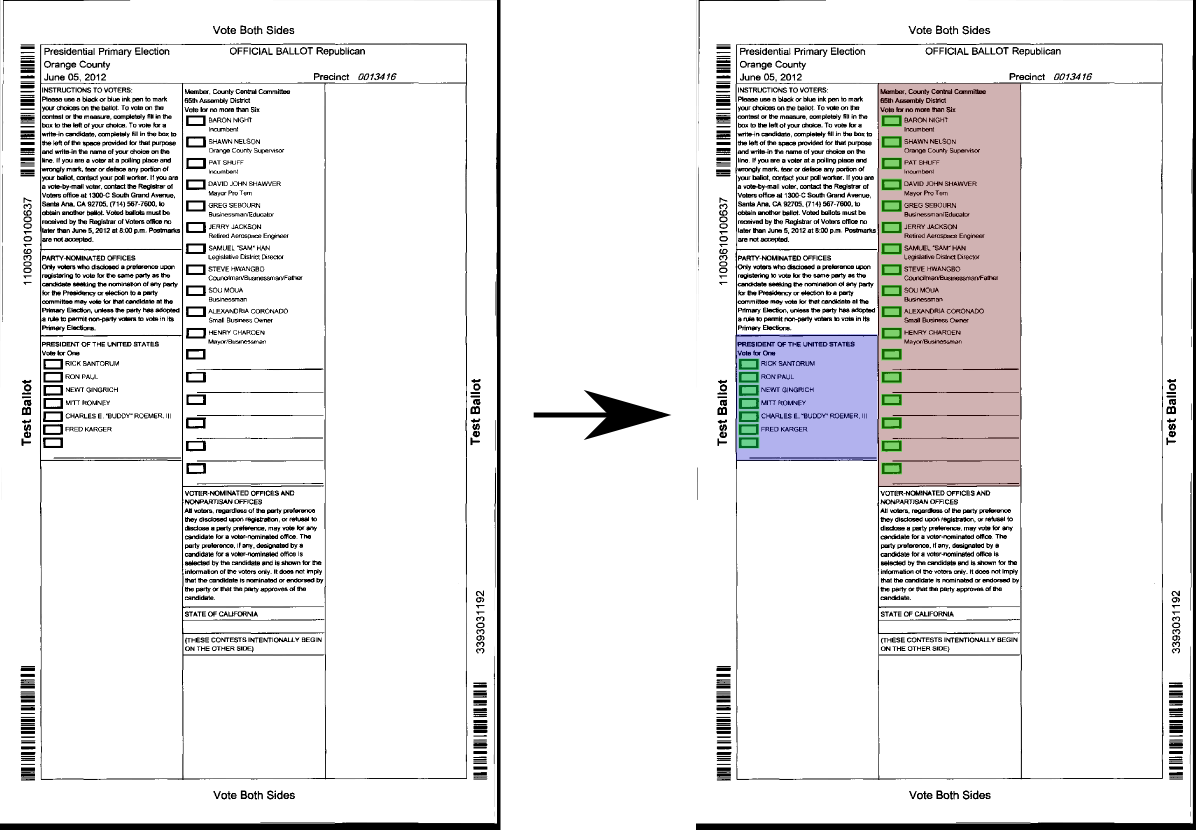

In other words, the end result of this step will look something like this:

Style Annotation

First, we will annotate the location of voting targets and contests.

Click the Add Target button on the top button bar to begin marking the location of voting targets. The mouse cursor, when hovered over the ballot, should change to a cross-like cursor when you are in the Add mode.

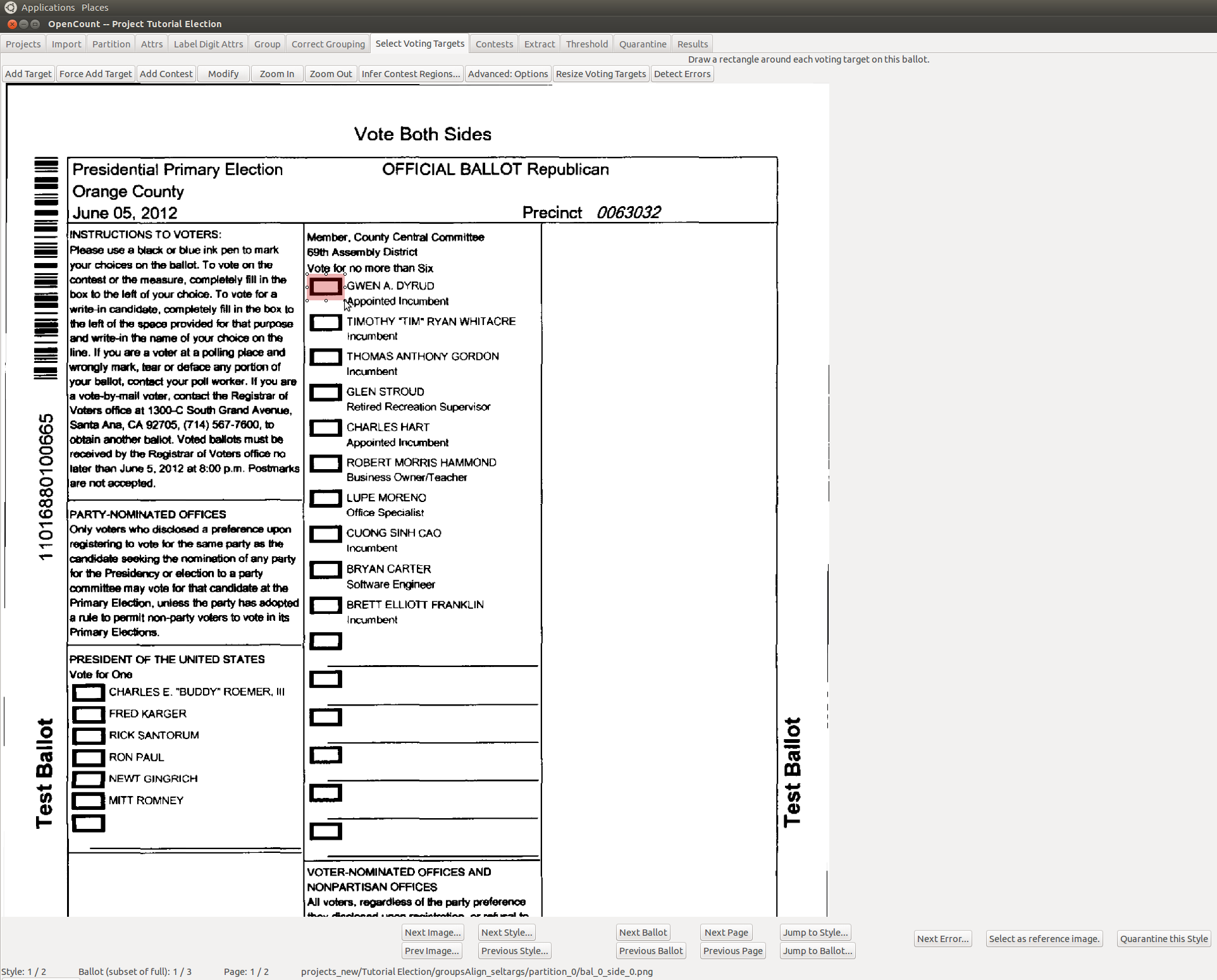

To mark your first voting target, click and drag a box around one of the empty voting targets, then release the mouse:

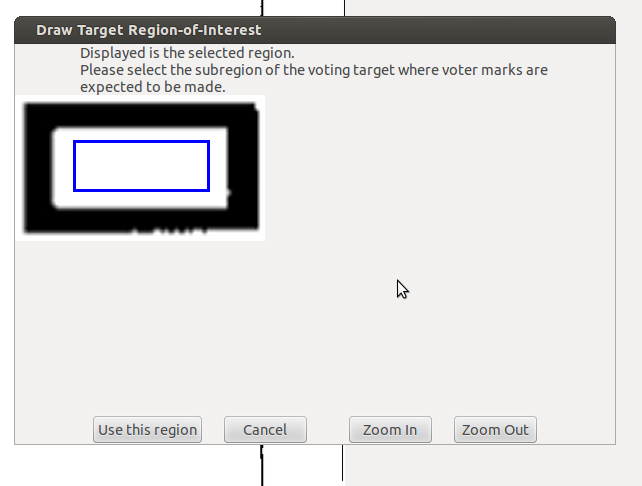

For the first voting target that you mark, a pop-up will come up, asking you to indicate where the voter is expected to fill in the voting target. This information is used in future steps to help determine which voting targets are filled in. Draw a box that encloses the entire interior of the voting target, and click Use this region to accept:

You may also change this Mark Region by clicking the "Set Mark Region" button on the top button menu bar.

Note: it is actually recommended to select a smaller Mark Region whenever possible. For instance, this is a Mark Region that will improve OpenCount's ability to discern filled-in from unfilled-in voting targets:

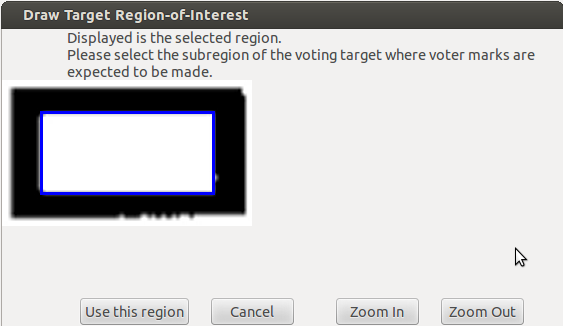

However, for the purposes of this tutorial use the larger Mark Region area.

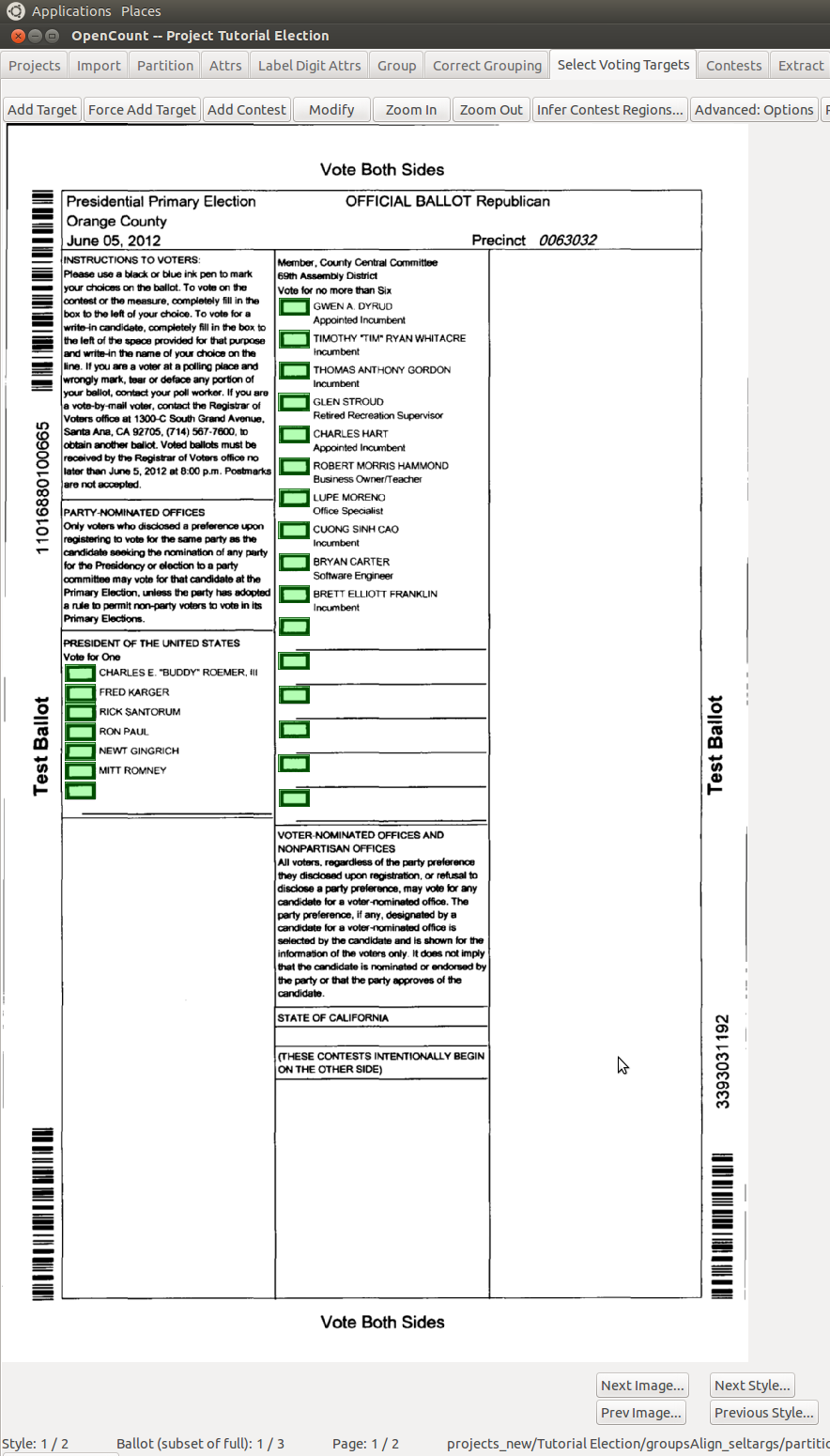

Now, OpenCount will run an automated search to find all instances of voting targets. Once it completes, the user interface will be updated accordingly:

We will need to examine all images to verify that every voting target was indeed detected correctly. We also need to make sure that false matches are discarded. To advance through the images, use the Next Image... button on the bottom button bar. Click this button once.

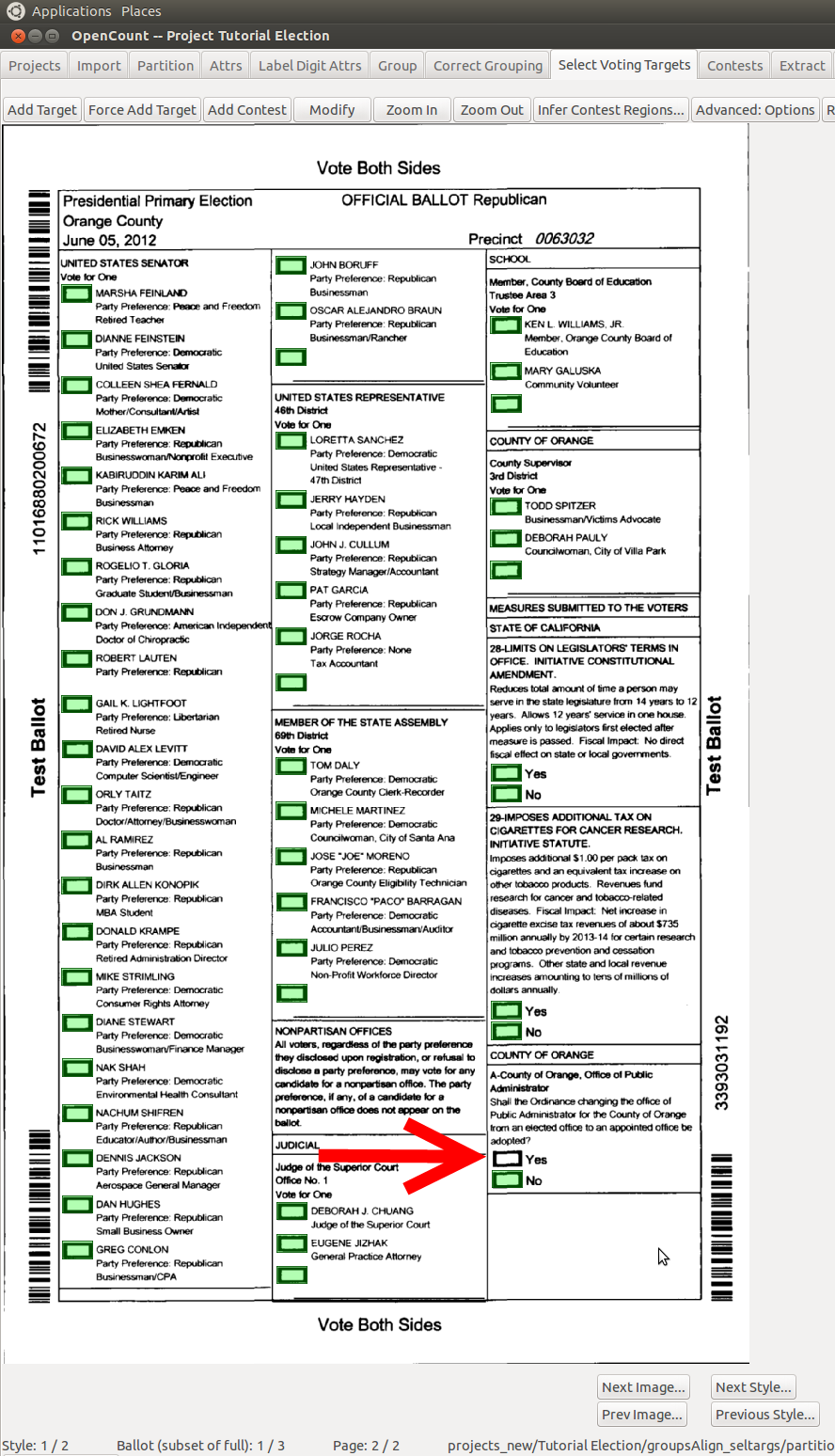

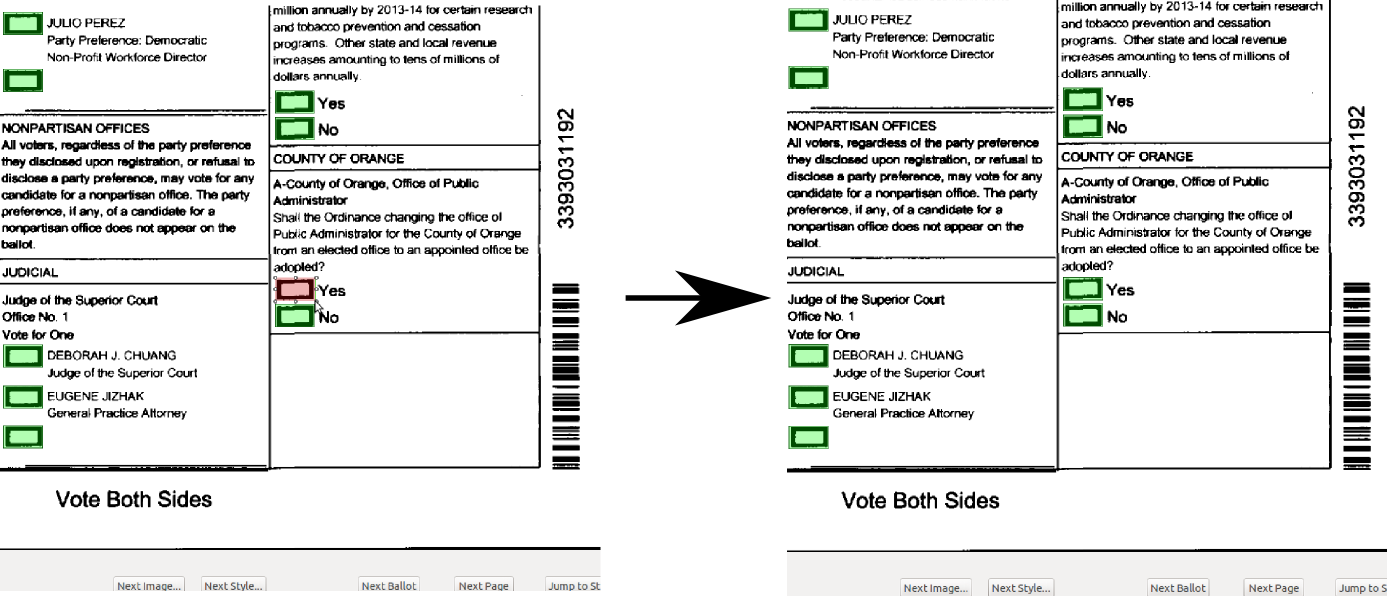

On this ballot side, one of the voting targets was not correctly detected on the lower right hand side.

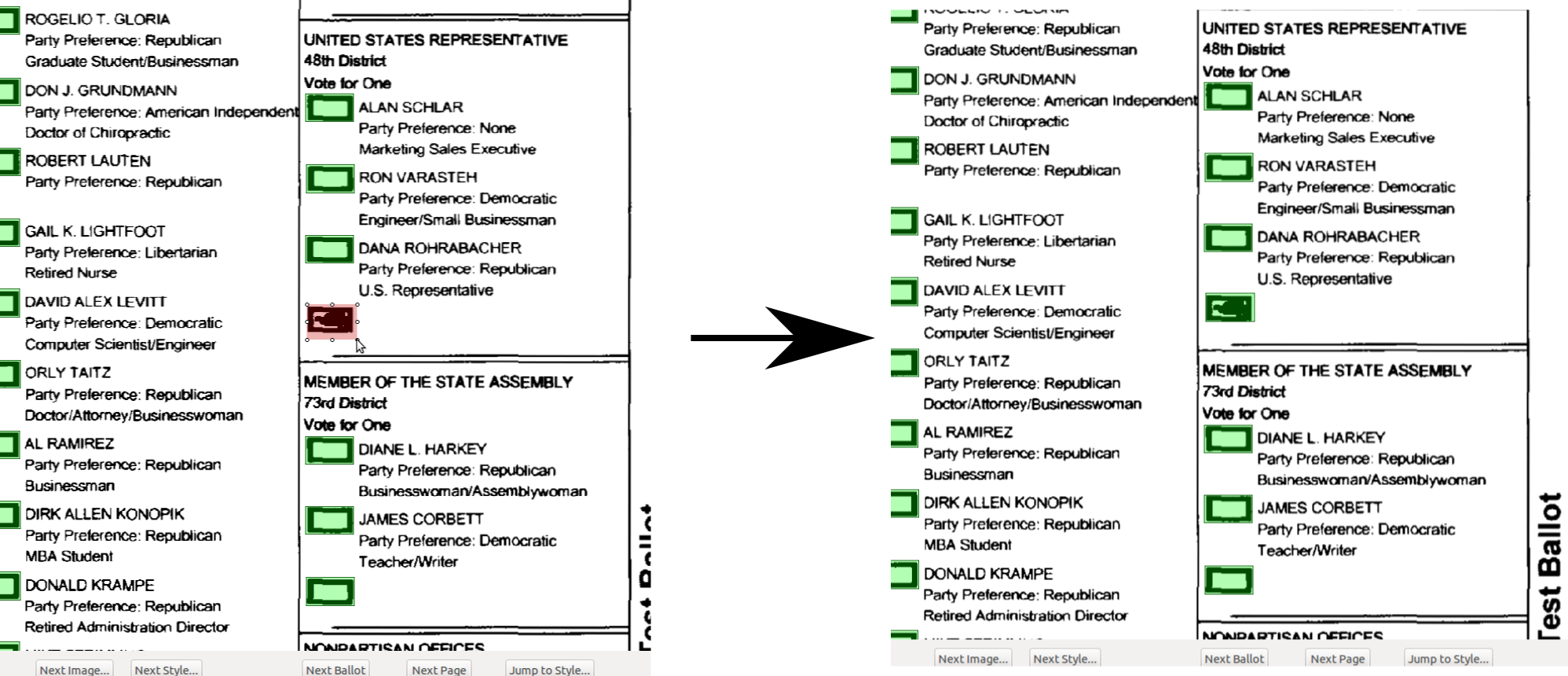

Draw another box around the voting target. Note that this will trigger another automated search:

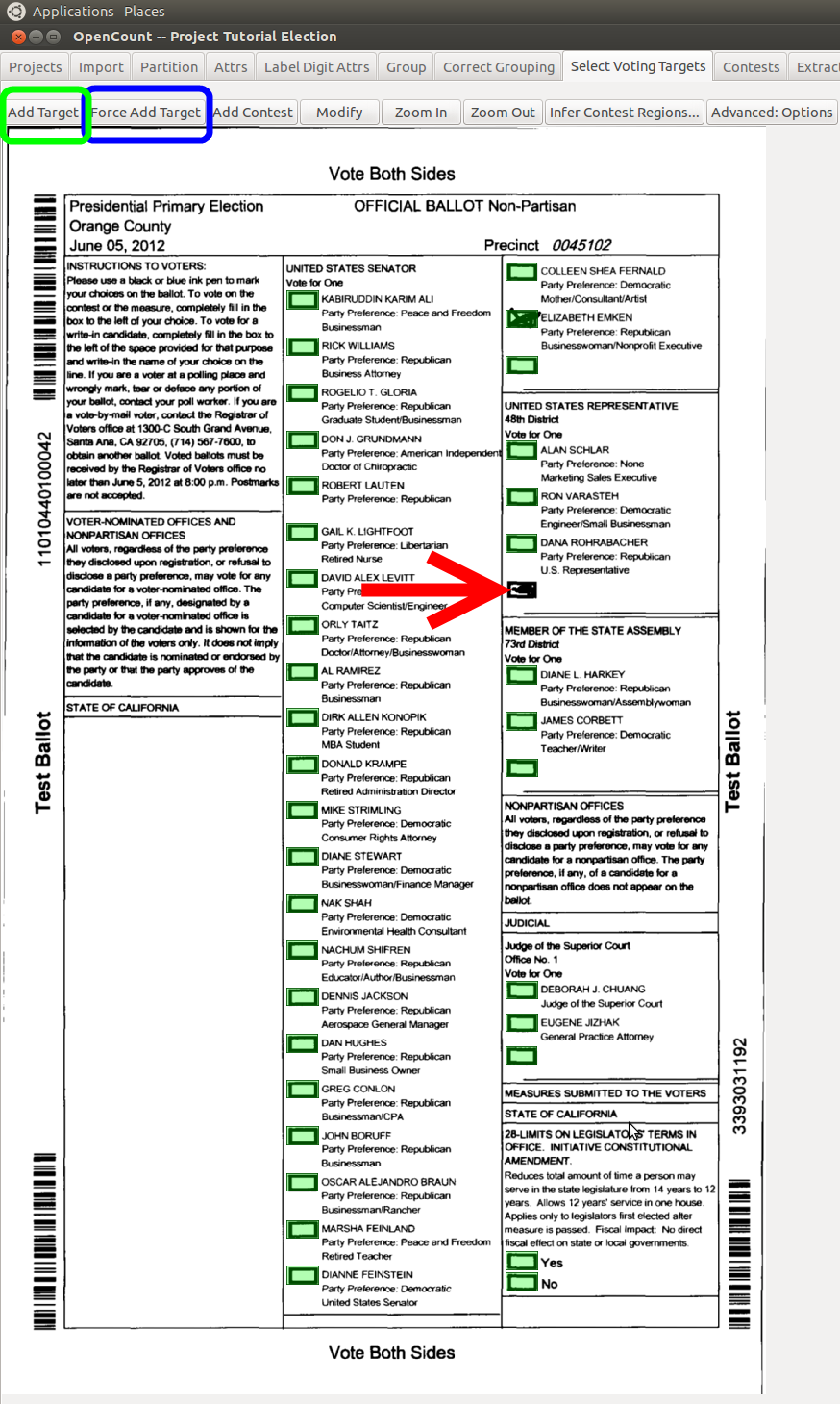

Advance to the next image (by clicking the Next Image... button). Here, we see an instance where a voting target was not found because the voting target is filled in:

You have two options to mark this voting target:

• Draw another box around this filled in voting target with the Add Target button. This will trigger an automated search, which may take a few minutes depending on the election size.
• Use the Force Add Target button (highlighted in blue above) to mark the filled-in voting target without triggering an automated search. This is handy if you wish to mark a voting target without waiting for an automated search to complete.

Whatever option you choose, you will still draw a box around the voting target:

Step through the rest of the images to make sure that all voting targets have been detected.

Once you have verified that all voting targets have been detected, the next step is to provide the bounding boxes for each contest. The typical way to do this is to first run the automated contest box detection procedure, and then verify/correct the results.

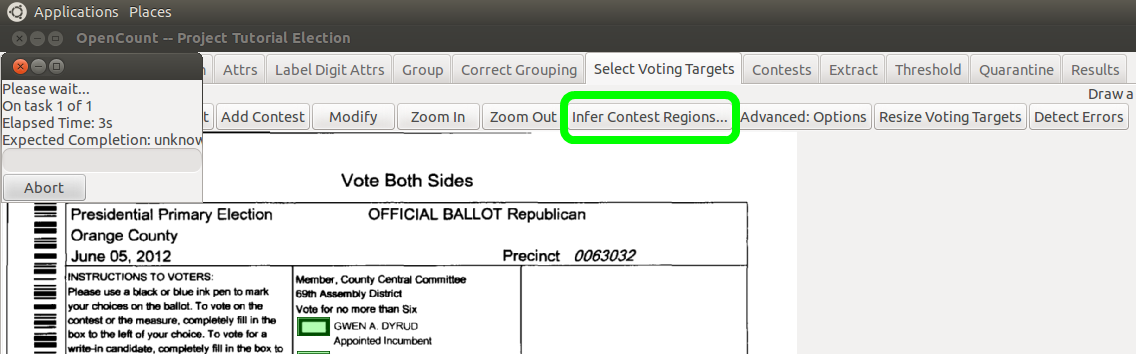

To run the automated contest detection, click the Infer Contest Regions... button on the top button bar. This will trigger some computation that may take a few minutes, depending on the election size:

Once the computation completes, step through the images and verify that all contests have been correctly detected. Common errors to look out for are:

• Contests that are incorrectly split into 2+ contests
• Contests that have been incorrectly merged
• Missing contests

Tips

You can add new contest bounding boxes by clicking the Add Contest button on the top button bar. To resize, move, or delete a contest bounding box, click the Modify button on the top button bar. You can resize a box by clicking+dragging any of the corners of the box. To move a box, simply click on the interior of a box, and click+drag to move it. Finally, to delete a box, select the box, and press the DELETE or BACKSPACE key on your keyboard.

Finally, you can select multiple boxes at once by clicking on an uninhabited area of the ballot, and dragging a selection box around multiple boxes. You can then move/delete multiple boxes at once.

Contest Data Entry

In this step, you will enter the title and candidate names for each contest. To reduce the required operator effort, OpenCount will employ an automated contest duplicate detection technique.

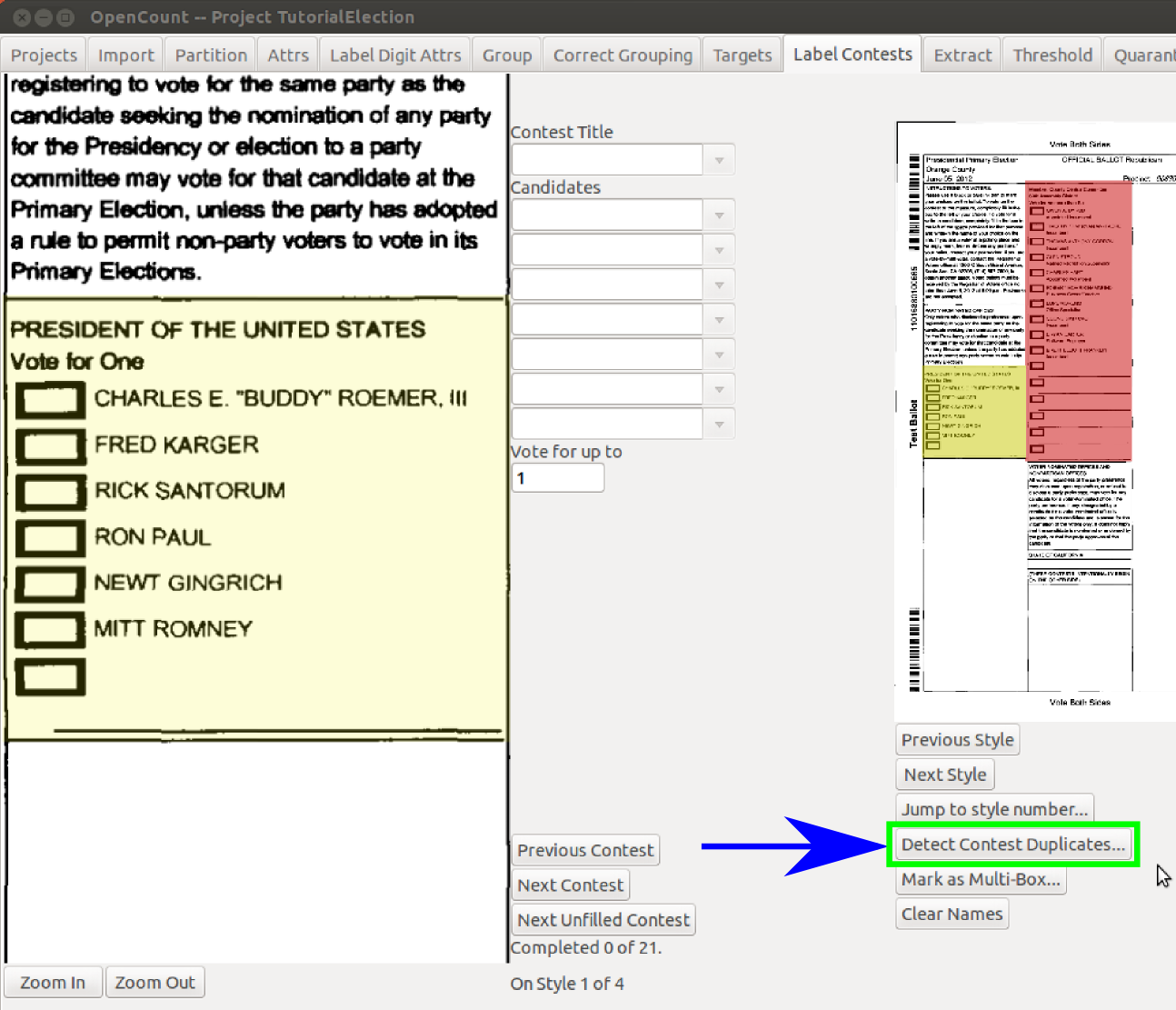

First, click the Compute Equiv Classes button to run the contest duplicate detection routine:

When the computation is complete, a pop-up window will come up displaying the detected contest duplicates:

In this window, OpenCount displays all contests that it claims is the same all at once in the form of a min and max overlay. For instance, in the above picture there are 3 contests displayed at once.

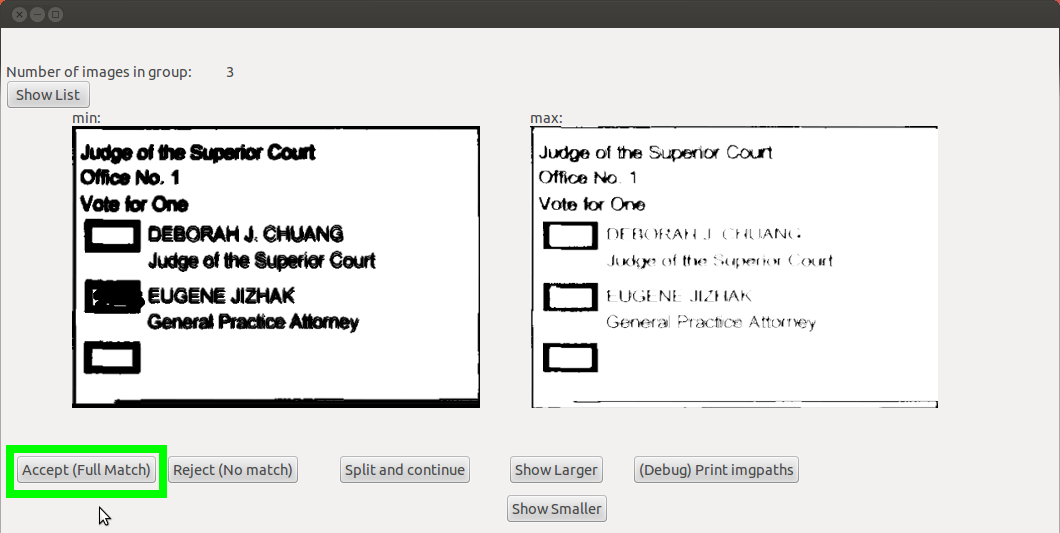

In this instance, we can visually confirm that these all indeed refer to the contest "Judge of the Superior Court (Office No. 1)", so click the Accept button to confirm that these are indeed all the same contest.

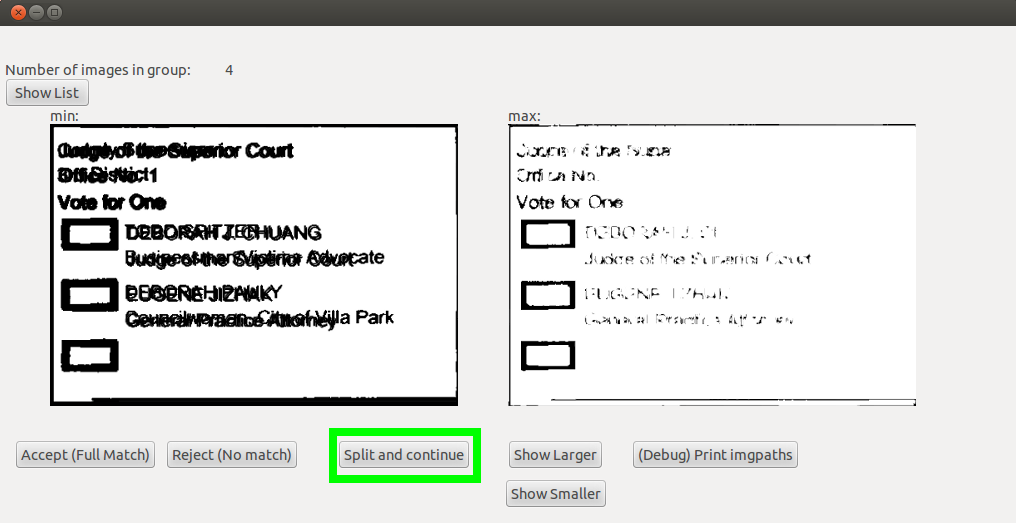

However, here is an instance where the overlay is too noisy to definitively make a judgement:

For these cases, you can either:

• Reject the entire group of contests, and move on, or:
• Split the current group of contests into two different groups to try to "clean" up the overlays.

When the "Split and Continue..." action is selected, the current group is split into two smaller groups:

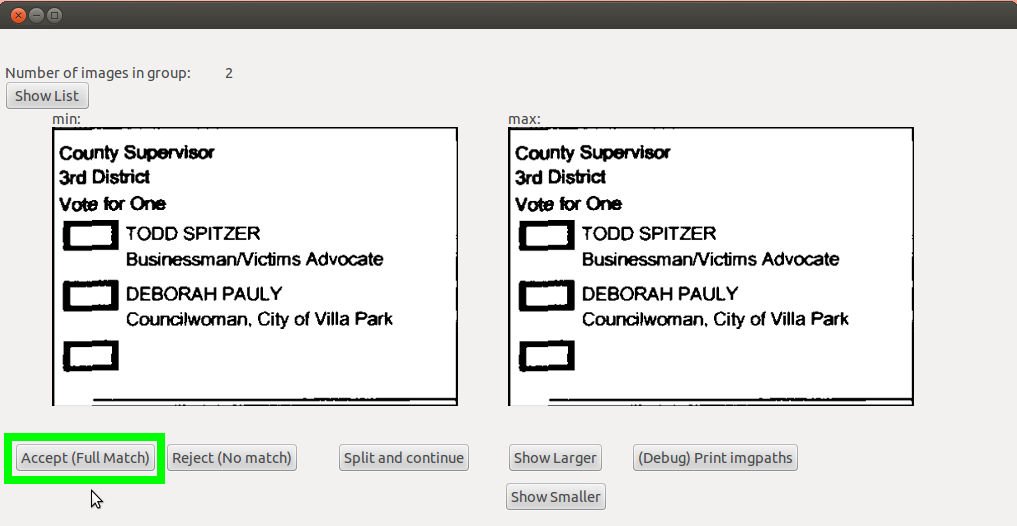

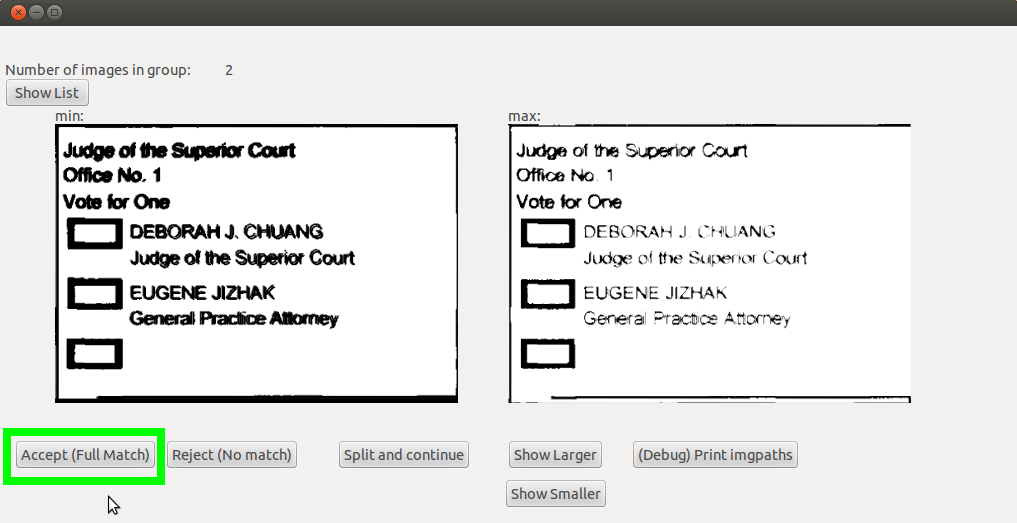

As you can see, in this case the "Split" action successfully separated the two contests into separate groups. We can then choose the "Accept" action for both groups.

Tip: Try to choose the Split option over the Reject option when possible, especially with large groups. The goal of this step is to identify as many contest duplicates as possible, so that the manual data entry step is minimized.

If instead you reject every contest group, then you will have to manually enter every single contest.

Data Entry

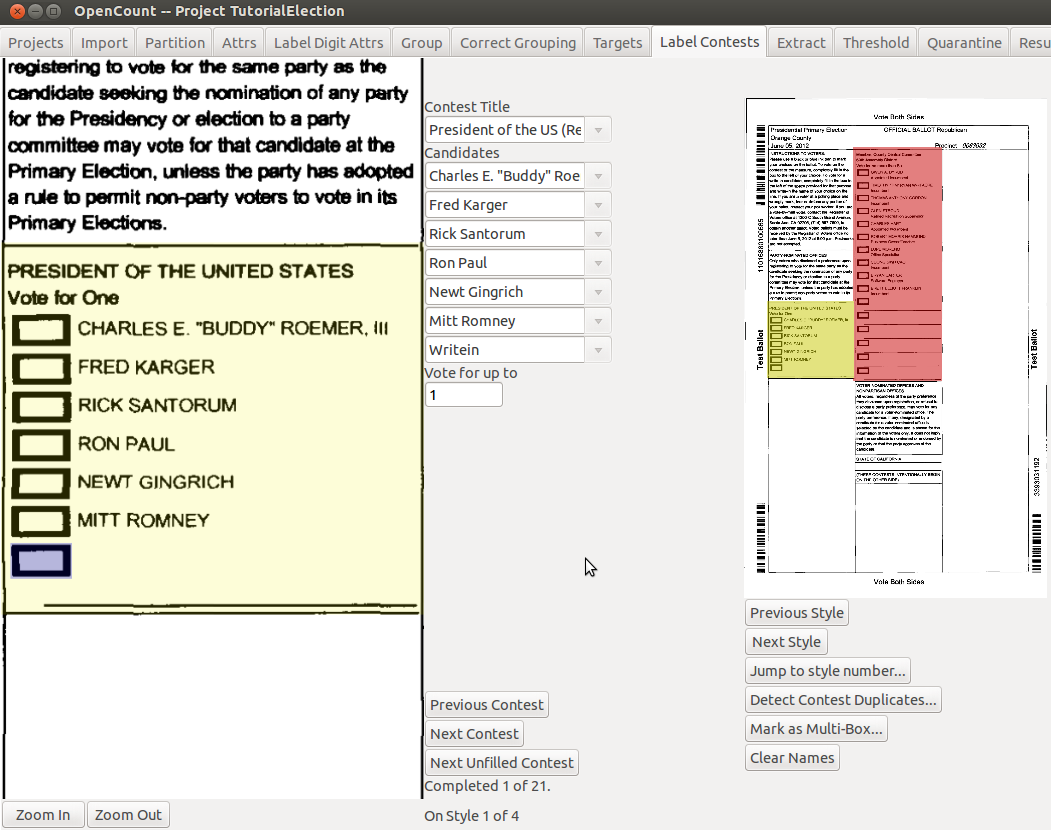

Once the contest duplicate detection process is complete, begin filling in the contest title and candidate names. You can use the

<TAB>

and

<SHIFT>

<TAB>

to move forward/backwards among the text fields. Pressing

<ENTER>

will advance the cursor to the next candidate name, or to the next contest if you've reached the end of the contest.

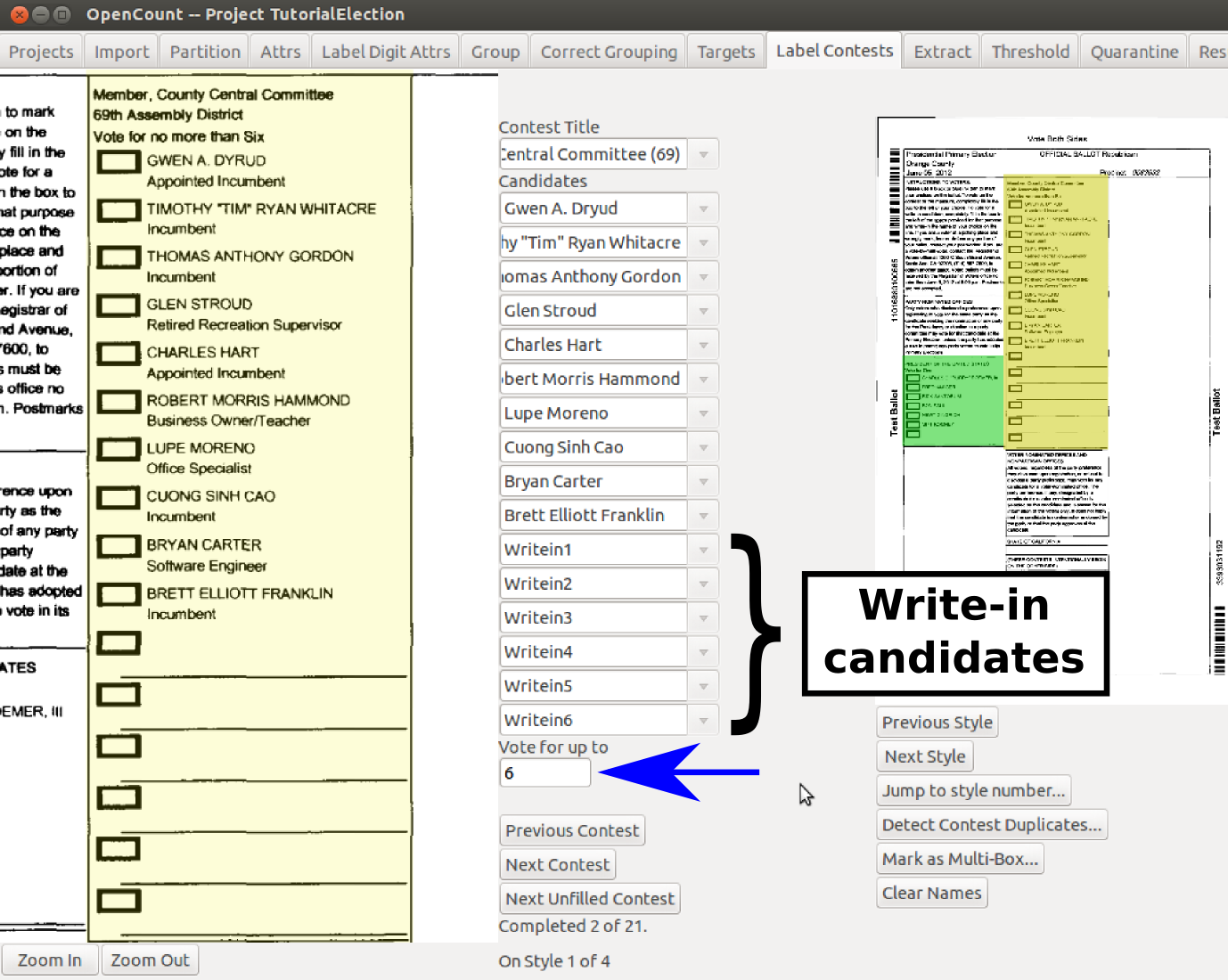

For write-in candidates, simply enter "Writein" as the candidate name. If there are multiple write-in candidates, add a number to the end, such as: "Writein1", "Writein2", etc:

For contests that allow more than one vote, be sure to update the "Vote for up to" field (pointed to by the blue arrow above).

Contests that span multiple columns (Multi-box)

Sometimes, a single contest spans multiple columns. This typically happens if there are so many candidates in a single contest that they all can't fit within a single column. For instance, in this tutorial dataset the "United States Senators" contest spans two columns:

INSERT PICTURE SHOWING THE US SENATOR CONTEST WITH "MARK AS MULTIBOX" HIGHLIGHTED

When this occurs, you will need to inform OpenCount that this contest spans two columns by clicking the Mark as Multibox button when the beginning of the contest is displayed.

This will trigger some additional computation, and the overlay verification window will show up again.

Move onto the next step by clicking the Extract tab on the top menu bar.

Ballot Interpretation

This stage consists of two main steps:

• OpenCount finds all voting targets on every voted ballot
• The operator classifies the voting targets as filled or empty.

Extract Voting Targets

To start the first step, click the Run Target Extract... button. Depending on the size of the election, this can take some time.

Once the computation is complete, proceed to the next step by clicking the Threshold tab on the top menu bar.

Classify Voting Targets

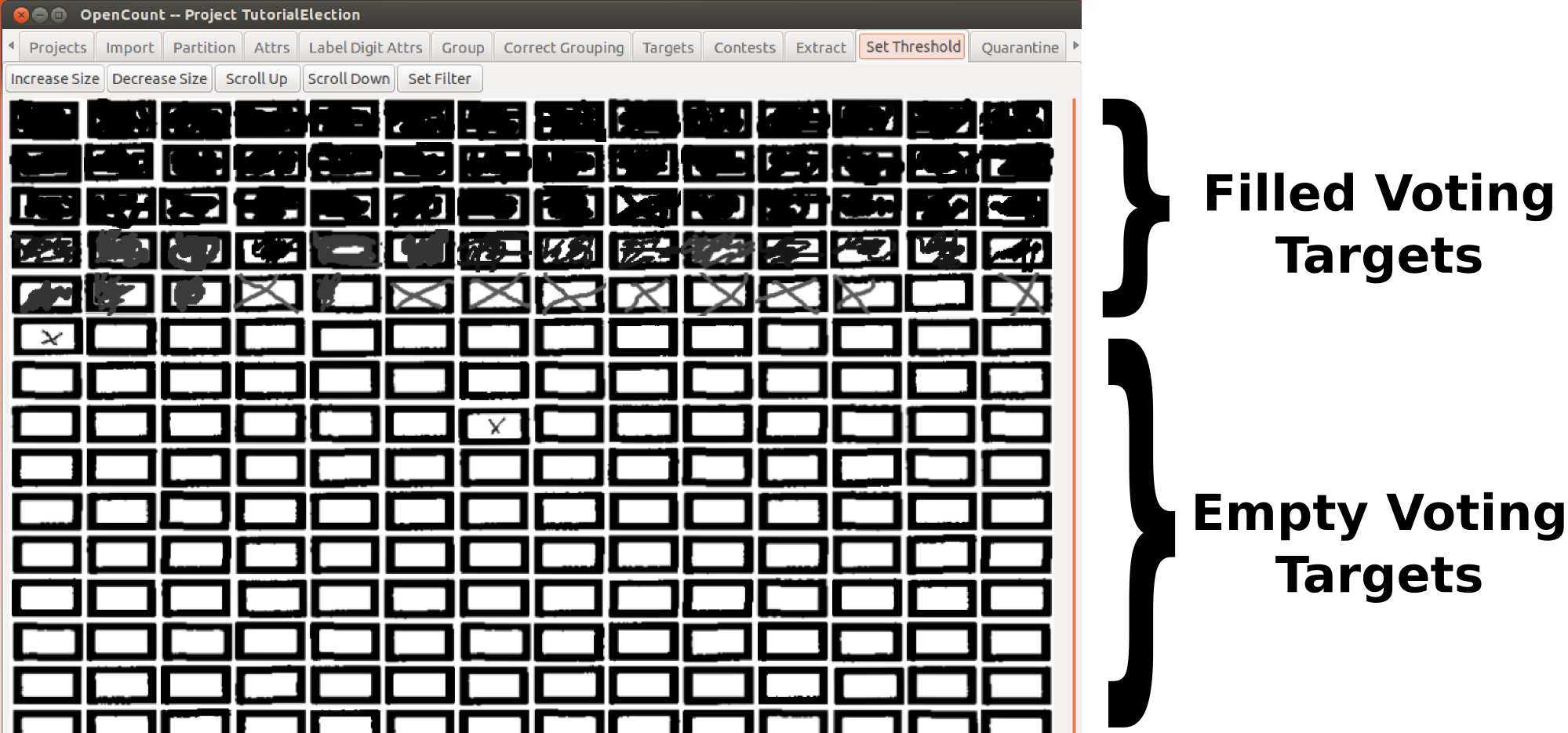

The objective of this step is to classify all voting targets as filled and empty. To do this, you will define a separating line on the grid of voting targets that separates the filled targets from the empty targets.

Because the voting targets are sorted by how dark the target patch is, the filled-in targets should all reside at the top of the grid, whereas the empty targets will be at the bottom of the grid.

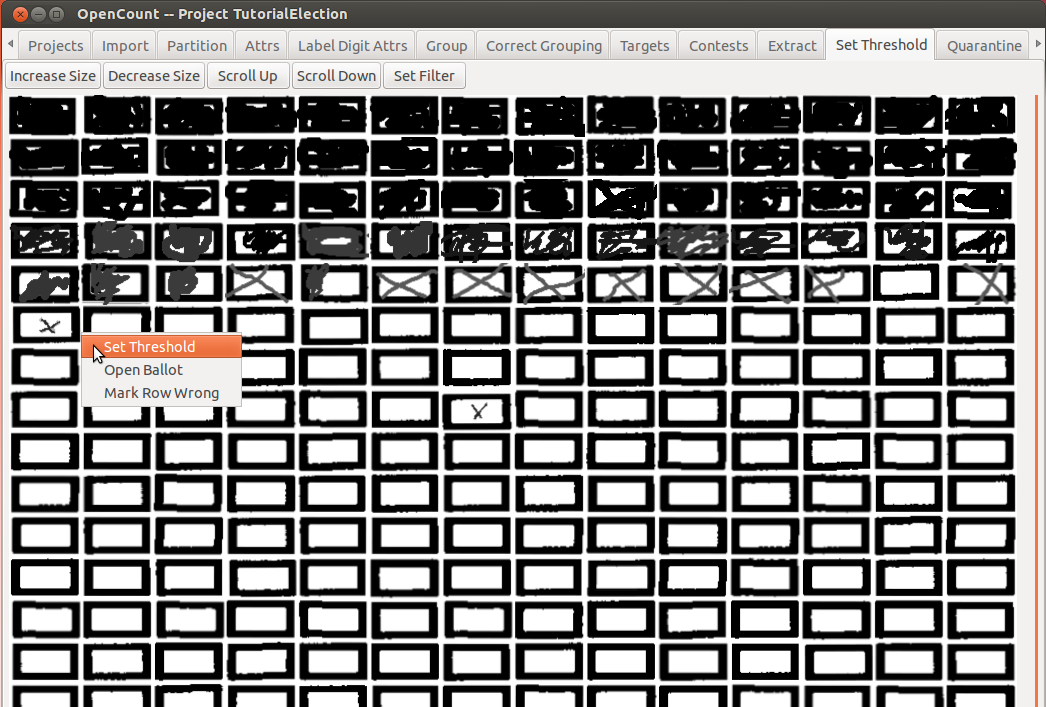

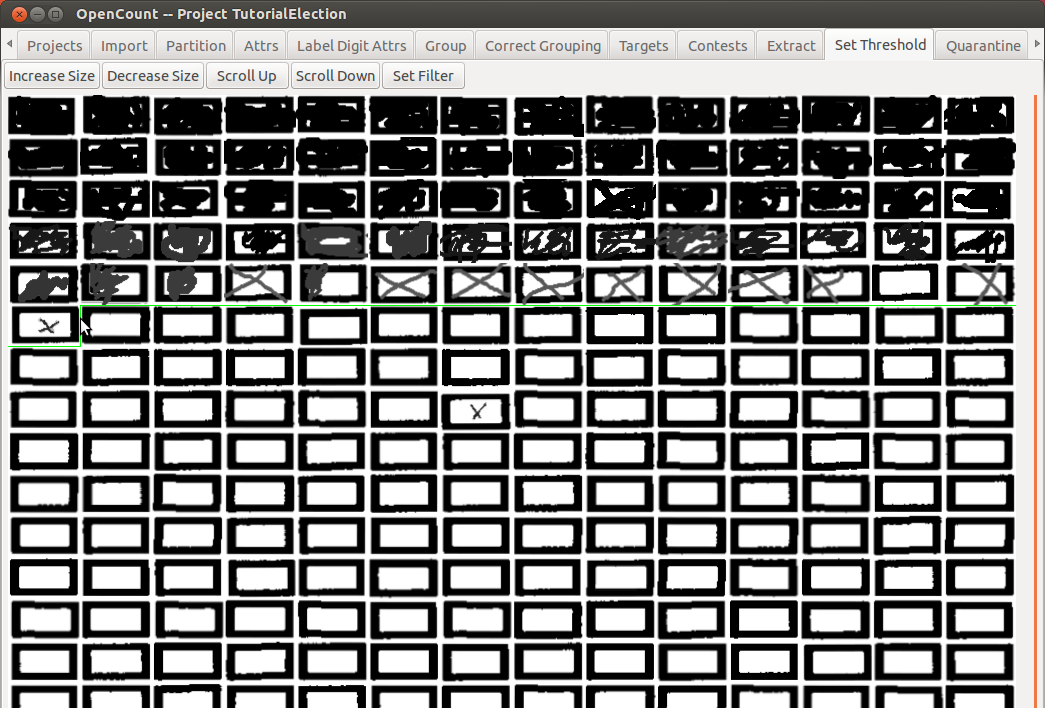

To place the separating line, right click on the location, and choose the Set Line option from the context menu. A green line will be displayed: all targets above the line will be treated as filled, and all targets below the line will be treated as empty.

Correcting Mis-classified Targets

Sometimes, a perfect separating line is not possible. For instance, faint voter marks may lie below the separating line, and hesitation marks may lie above the separating line.

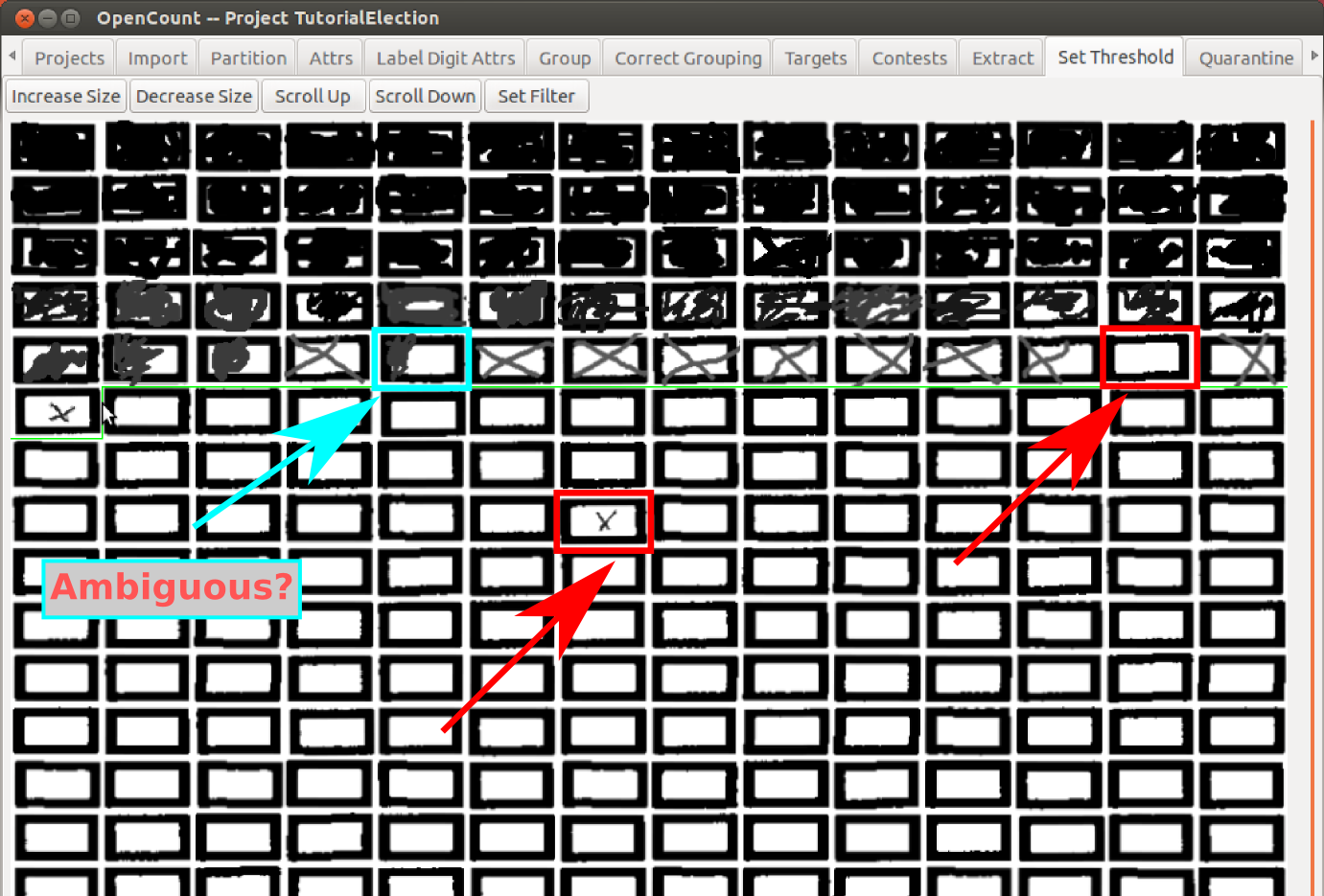

For instance, in this tutorial dataset you will notice that a few marked voting targets are mixed in with a few empty voting targets.

Because these filled-in targets reside below the separating line, they would be interpreted as empty unless we flag them as mis-classified. To do so, simply left-click the voting targets in question: flagged targets will have a pink transparent background.

Similarly, if any empty voting targets lie above the separating line, flag them by left-clicking them to indicate that they are actually empty:

Ambiguous Marks

Sometimes, it is difficult to tell determine the voter intent merely from the voting target itself. For instance, in the voting target enclosed in the cyan box above, the mark may be a hesitation mark, rather than an actual mark.

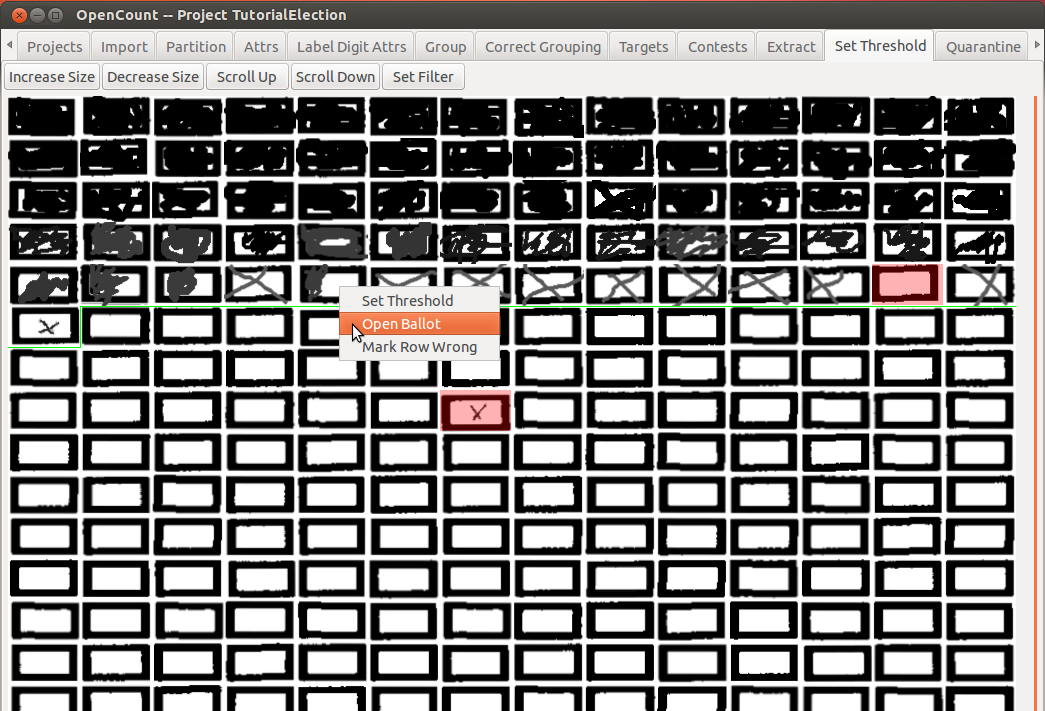

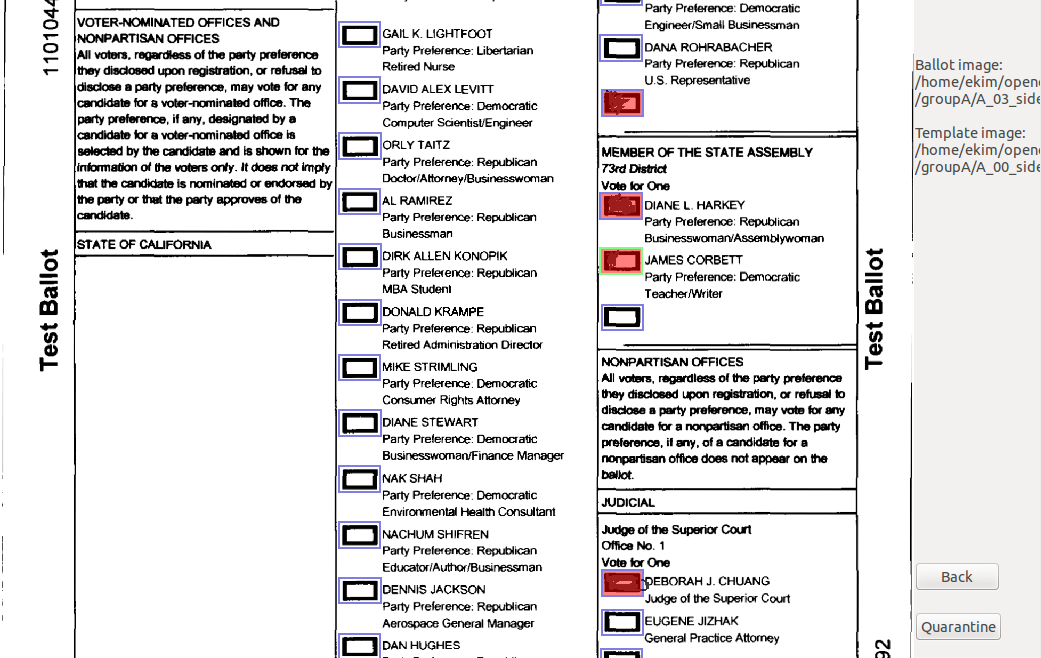

OpenCount provides a way to view the entire ballot, so that you can view the proper context and make an informed judgement. To do so, right click on the voting target, and click the View Ballot... option:

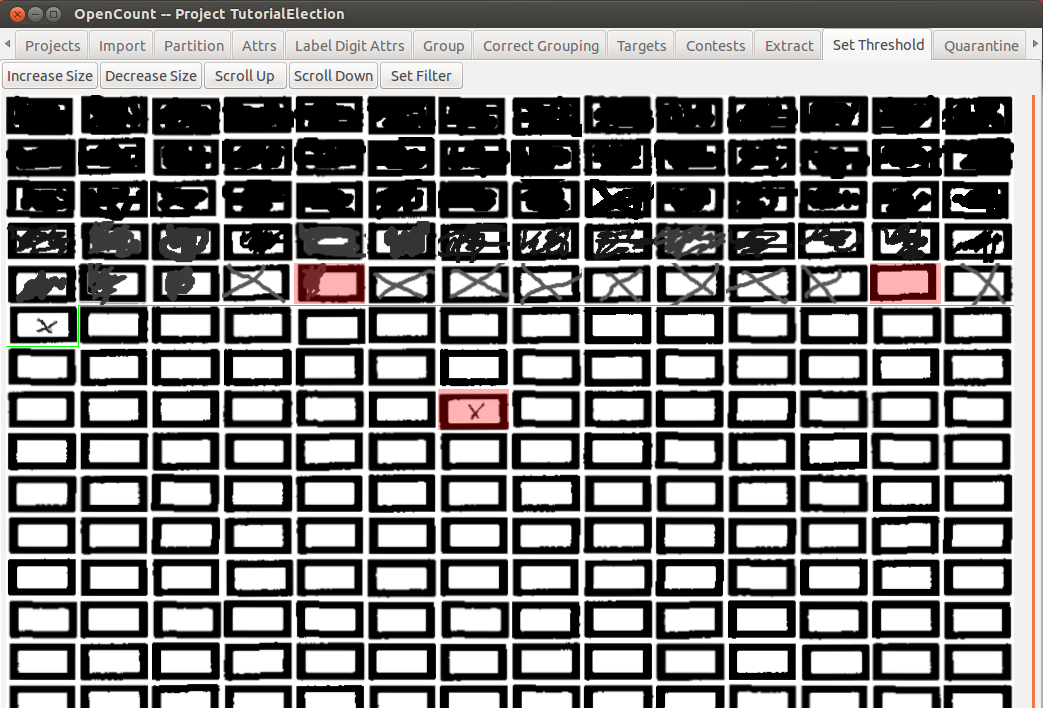

From here, we can see that the mark is a hesitation mark after all. Click the Back button to return to the grid screen, and then click the voting target in question to mark it as being empty:

Quarantining Ballots

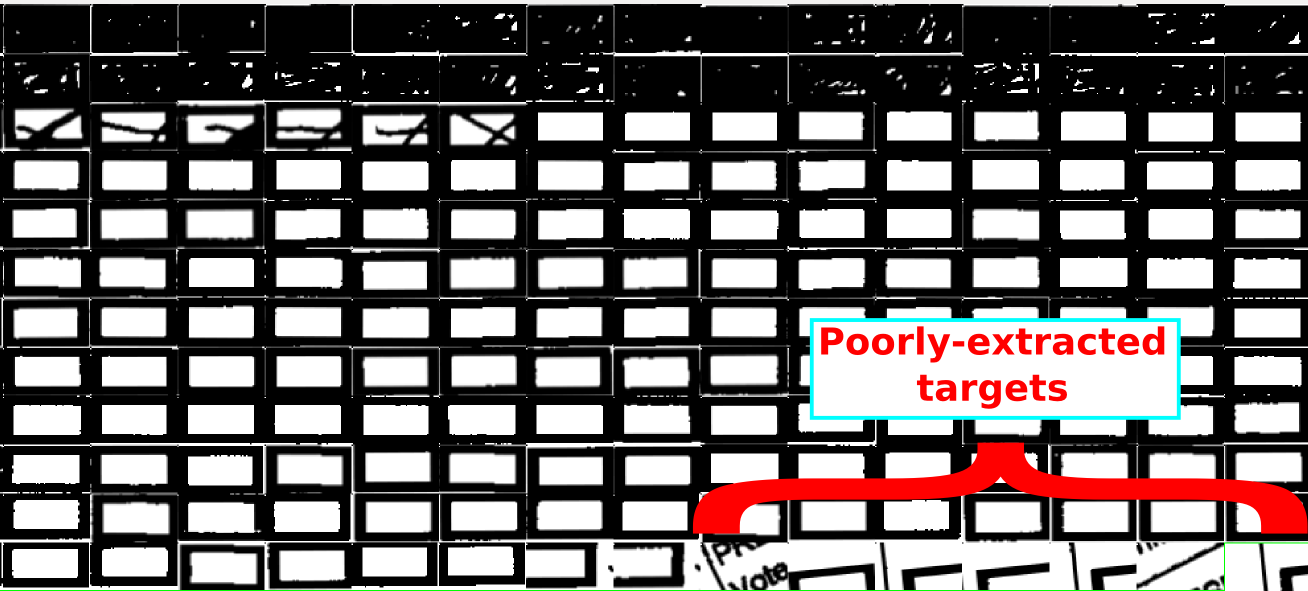

Sometimes, the target extraction routine will not output good results on a ballot. You can see an example here, where a "voting target" is in fact a region of contest text:

To handle these cases, right click the offending "voting target", click the Show Ballot button, then click the Quarantine Ballot button. All voting targets from this ballot will be flagged as quarantined, and is visually indicated by an opaque dark-red mask.

These ballots will be manually interpreted in the next step.

Process Quarantined Ballots

Throughout the OpenCount pipeline, ballots may be flagged as "problematic" for many reasons. This can happen via manual user intervention (such as during "Ballot Interpretation") or during automated processing steps.

In this step, you will manually annotate such quarantined ballots with all required information, namely:

• Cast votes
• Required ballot attributes, if any (such as precinct number).

If there are no quarantined ballots, then OpenCount will inform you and this step will not be necessary.

Discarding Ballots

In some cases, a scanned "ballot" may not be a ballot at all. For instance, scans of non-ballot sheets of paper may be present in the election dataset. For such cases, you will not want a CVR to be outputted - to discard such ballots from the election, check the "Discard Ballot" checkbox.

Proceed to the last step by clicking the Results tab on the top menu bar.

Generate Cast Vote Records (CVRs)

Finally, in this final step, OpenCount will generate a CVR for each ballot. The results are output to the project directory: if the project name is "TestElection", then the results will be found in:

    opencount/opencount/projects_new/TestElection/cvr/
    opencount/opencount/projects_new/TestElection/election_results.txt
    opencount/opencount/projects_new/TestElection/election_results_batches.txt

There are two primary output formats: Ballot-level Cast Vote Records (CVRs), and Cumulative Election Totals.

Ballot level CVRs

In the following directory will be a CVR for each ballot: opencount/opencount/projects_new/PROJECTNAME/cvr/*

A CVR is a text document that contains all votes cast by the voter on that ballot. The format is simple:

CONTEST TITLE 0
    CANDIDATE THAT RECEIVED VOTE
CONTEST TITLE 1
    CANDIDATE THAT RECEIVED VOTE
...

If an overvote or undervote is detected, then the CANDIDATE field will be OVERVOTE or UNDERVOTE respectively.

The directory structure of cvr/ matches the directory structure of the input voted ballots directory.

Cumulative election totals

The following two files contain the total election results:

    opencount/opencount/projects_new/TestElection/election_results.txt
    opencount/opencount/projects_new/TestElection/election_results_batches.txt

Conclusion

In this tutorial, you learned how to tabulate an election dataset using the OpenCount system.

There are two more topics that you may be interested in:

• Outputting precinct-level results
• Determining ballot features such as tally-group.

To learn how to do both, follow the links to these additional tutorials:

• Precinct-stamp decoding: TutorialPrecinctResults
• Ballot attributes

Thanks!
