+Introduction to AI-Optimized Architectures
+
+ Welcome to this course on designing software architectures that work effectively with AI coding assistants. As AI tools become more integrated into our development workflows, it's crucial to understand how to structure our codebases to maximize their potential. This tutorial, based on the research from the vibe-coding-architectures repository, will guide you through different architectural patterns and their impact on AI-assisted development.
+
+
+The Question: Does Architecture Matter for AI?
+
+ With the rise of powerful AI coding tools, a key question emerges: "How can we design codebases to be optimal for AI?" Traditional architectural patterns were designed for human developers, but AI assistants have different requirements for understanding code and navigating context. The primary goal of this course is to determine if and how software architecture affects the performance of AI code generation.
+
+
+Key Components of AI Code Generation
+
+ The success of AI in coding tasks depends on four main components:
+
+
+ - Prompt: The instruction given to the AI. The model generates the most probable continuation of a text based on the prompt.
+ - Model: The underlying Large Language Model (LLM) that determines the quality and probability of the generated code.
+ - Context: All the information available to the model beyond the prompt, which is primarily the existing codebase.
+ - Tools: Functions and capabilities that allow the AI to expand its context, such as file readers, search tools, and terminal access.
+
+
+ This course will focus on optimizing the context through thoughtful codebase architecture.
+
+
+Why is Architecture Important for AI?
+
+ A well-designed architecture significantly impacts the effectiveness of AI coding tools. Here's why:
+
+
+ - Context Management: Good architecture simplifies context management for both developers and AI, ensuring the AI has the right information without being overwhelmed.
+ - Token Efficiency: AI models have a limited context window (measured in tokens). A token-efficient codebase requires less context to be provided to the AI, leading to faster and more accurate results.
+ - Resource Efficiency: A well-structured codebase is more cost-effective. It saves developer time, reduces the computational resources (tokens) needed by the AI, and ultimately saves money.
+ - Clarity and Predictability: Familiar and clear architectural patterns are easier for AI to understand and follow, leading to better adherence to the existing design during code generation and modification.
+
+
+ In the following stages, we will explore four different architectural patterns, build a small application with each, and analyze their performance with AI assistants.
+
diff --git a/project_57_ai_optimized_architectures/57_502_experimental_setup.html b/project_57_ai_optimized_architectures/57_502_experimental_setup.html
new file mode 100644
index 0000000..0f96b1b
--- /dev/null
+++ b/project_57_ai_optimized_architectures/57_502_experimental_setup.html
@@ -0,0 +1,111 @@
+
+Experimental Setup
+
+
+ To provide a clear and transparent foundation for the findings in this project, this section details the experimental setup used in the original research. Understanding the methodology will help you interpret the results and replicate the experiments with your own tools and models.
+
+
+3.1 Experimental Setup
+
+ - Test Application: Snake game implementation
+ - Test Modification: Addition of randomly generated maze functionality
+ - LLM: Claude Sonnet 3.7
+ - Isolation: New functionality added from new chat (no context sharing between chats)
+ - Sample Size: 5 runs for each architecture
+
+
+3.2 Evaluation Metrics
+The performance of each architecture was measured against the following metrics:
+Initial Generation Metrics:
+
+ - One-shot generation success: Application works correctly on the first attempt (binary).
+ - Architecture adherence: Generated app follows the specified architecture (binary).
+ - Token consumption: Cached and non-cached tokens for the initial generation.
+ - Context window size: Final context length after generation.
+
+Modification Metrics:
+
+ - One-shot modification success: New feature works on the first attempt (binary).
+ - Architecture preservation: Architecture is maintained after modification (binary).
+ - Modification token consumption: Tokens used for the feature addition.
+ - Final context window size: Context length after modification.
+
+
+
+How to Monitor Token Usage in Cursor
+
+ As you work with an AI assistant, keeping an eye on token consumption can be insightful. In Cursor, you can typically see the token count for your prompt and the AI's response in the Cursor dashboard. This can help you understand how different instructions and context affect the AI's workload.
+
+
+Where can I see the token count for my interactions with the AI?
+
+
+3.3 Project Setup
+
+ Now, let's set up the necessary files and folders for our experiment. First, create a directory for each architectural pattern we will test.
+
+
+
+Create four new directories: `layered_architecture`, `atomic_composable_architecture`, `vertical_slice_architecture`, and `pipeline_architecture`.
+
+
+
+ Next, we'll create a single, detailed specification file for the Snake game. This ensures the AI assistant has consistent requirements for each architecture.
+
+
+
+Create a new file named `snake_game.md` with the following content:
+
+```markdown
+# Project: Browser-based Snake Game (MVP)
+
+## 1. Purpose & Scope
+**Purpose:** To deliver a minimal, fully playable Snake game in a modern browser.
+**Scope:** This MVP includes only the essential features needed for a functional Snake game; it excludes all optional enhancements.
+
+## 2. MVP Features
+- **Game Initialization:** A snake of length 3 appears centered on a 20×20 grid. One food item spawns at a random empty cell.
+- **Core Game Loop:** The game updates every 150 ms by default. Each tick involves moving the snake, detecting collisions, and rendering the state.
+- **Controls & Direction Handling:** Use Arrow keys (and/or WASD) to change direction. 180° reversals (e.g., from left to right) are disallowed.
+- **Collision Detection & Game Over:** Hitting a wall or the snake's own body triggers "Game Over." The game loop pauses, an overlay with the final score is shown, and input is disabled until restart.
+- **Scoring Display:** The current score (number of food eaten) is updated in real time above or beside the canvas.
+- **Restart Functionality:** A "Restart" button resets the game to its initial state without reloading the page.
+- **Browser Compatibility:** Supports the latest two major versions of Chrome, Firefox, Edge, and Safari.
+
+## 3. Functional Requirements
+- **FR-1:** Initialize the game state with a snake of length 3 at the grid center and one food item.
+- **FR-2:** Implement a game loop that runs at a configurable interval (default: 150 ms).
+- **FR-3:** Capture and queue keyboard events for direction changes; prevent direct reversals.
+- **FR-4:** On each tick:
+ 1. Move the snake head one cell in the current direction.
+ 2. Check for wall or self-collision; if one occurs, trigger the game-over flow.
+ 3. If the head lands on food: increment the score, grow the snake by one segment, and spawn new food.
+ 4. Render the updated snake, food, and score.
+- **FR-5:** Display a "Game Over" overlay with the final score and a clickable "Restart" button.
+- **FR-6:** Reset all state (snake position/length, score, food) when the "Restart" button is clicked.
+
+## 8. Non-Functional Requirements
+- The canvas should scale to fit the viewport while preserving the cell aspect ratio.
+- Use ES6+ modules to separate game logic from rendering.
+- All interactive elements should be reachable via the keyboard; provide minimal ARIA labels on buttons.
+
+## 9. Acceptance Criteria
+- The player can move the snake using the keyboard; the snake cannot reverse direction by 180°.
+- The snake grows when eating food, and the score increments accordingly.
+- Colliding with a wall or itself immediately stops the game and displays the final score.
+- Clicking "Restart" immediately resets and restarts the gameplay.
+- The game works smoothly in Chrome, Firefox, Edge, and Safari without console errors.
+```
+
+
+ Now, let's test each code architecture design in practice.
+
+
+ The results presented in this course are based on a specific set of tools and models. Your results may differ depending on the IDE, AI assistant, and underlying language model you use. Feel free to experiment with your own settings to see how the architectures perform!
+
diff --git a/project_57_ai_optimized_architectures/57_503_layered_architecture.html b/project_57_ai_optimized_architectures/57_503_layered_architecture.html
new file mode 100644
index 0000000..cdfc620
--- /dev/null
+++ b/project_57_ai_optimized_architectures/57_503_layered_architecture.html
@@ -0,0 +1,156 @@
+

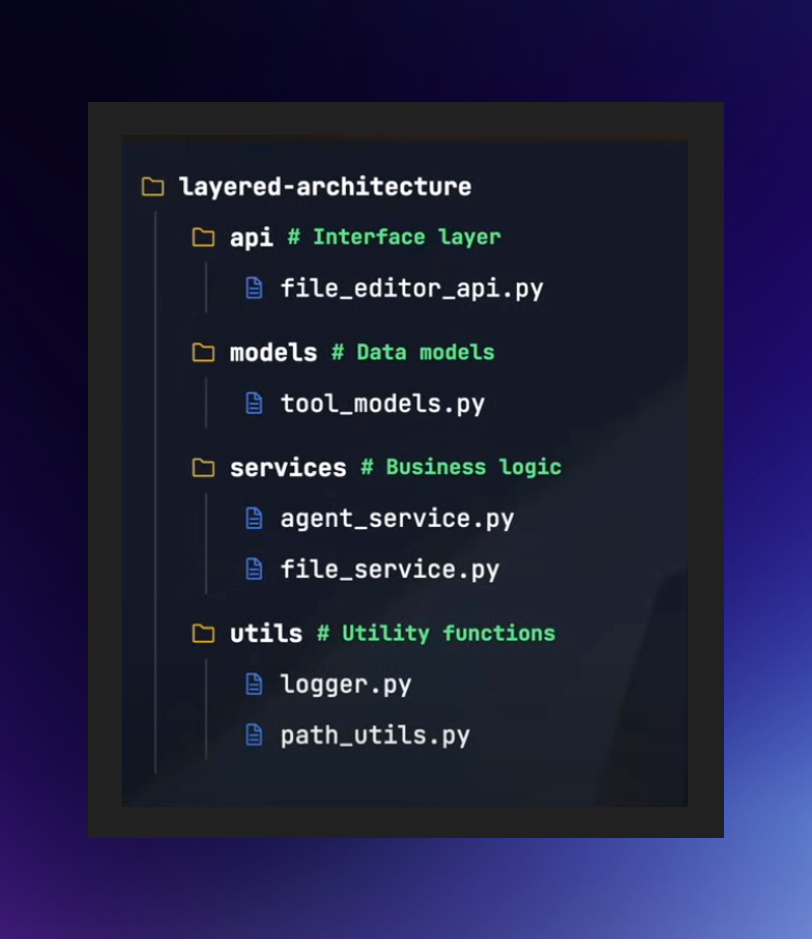

+2. Layered Architecture
+
+ The Layered Architecture is a classic and widely-used design pattern. It organizes an application into horizontal layers, each with a specific responsibility. This separation of concerns makes the codebase easier to understand, maintain, and test.
+
+
+
+ A typical web application might have three layers:
+
+
+ - Presentation Layer (UI): Handles all user interface logic.
+ - Business Logic Layer (Domain): Contains the core application logic and business rules.
+ - Data Access Layer: Manages data persistence and retrieval.
+
+
+ Dependencies in this architecture are strict and typically flow in one direction: Presentation → Business Logic → Data Access.
+
+
+Advantages
+
+ - High cohesion and low coupling between layers.
+ - Promotes separation of concerns.
+ - Well-understood and familiar to many developers (and AIs).
+
+
+Disadvantages
+
+ - Can be rigid; changes may require modifications across multiple layers.
+ - Can lead to unnecessary complexity for simple applications.
+
+
+Let's Build a Snake Game
+
+ Now, let's use an AI assistant to generate a Snake game using the Layered Architecture. First, we need to provide the AI with the game's specification and the architectural guidelines. The following blocks will create the necessary files.
+
+
+
+
+
+ Create a file /layered_architecture/architecture.md. Add the following content:
+

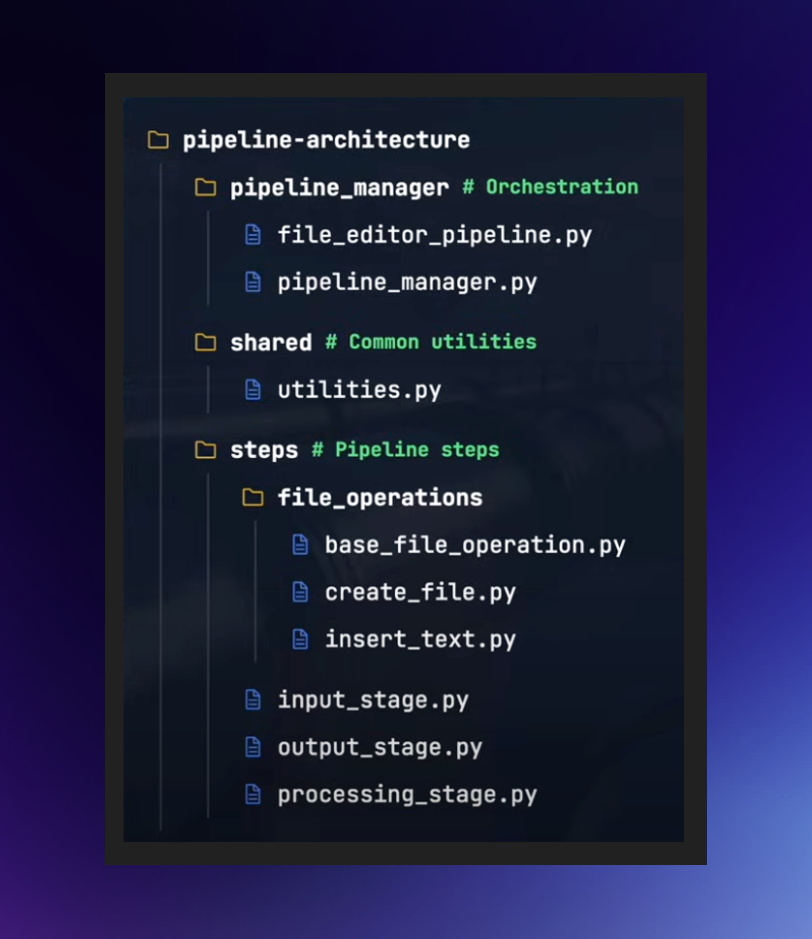

+ You are working in a codebase that MUST follow **Pipeline Architecture (PA)**.
+
+ ─────────────────────────────────
+ 🔹 1. Core Idea
+ ─────────────────────────────────
+ Process data as a linear (or branched) **flow of stages**:
+
+ Source ➜ Stage 1 ➜ Stage 2 ➜ … ➜ Sink
+
+ • Each stage performs ONE atomic transformation, then immediately forwards the record.
+ • Stages run concurrently; different records may sit on different stages at the same time.
+ • Contracts (schema or typed DTO) between stages are explicit and version-controlled.
+
+ “**Do one thing, pass it on.**”
+
+ ─────────────────────────────────
+ 🔹 2. Folder & Naming Rules
+ ─────────────────────────────────
+ src/
+ ├── pipeline/
+ │ ├── stages/
+ │ │ ├── 00_source.py # emits records
+ │ │ ├── 01_validate.py # Stage 1
+ │ │ ├── 02_enrich.py # Stage 2
+ │ │ ├── 03_predict.py # Stage 3
+ │ │ ├── 04_sink.py # final drop-off
+ │ │ └── __tests__/
+ │ ├── runner.py # wires queues, sets back-pressure, starts tasks
+ │ ├── contracts/ # Avro/Proto/JSON-Schema files
+ │ ├── shared/ # generic utils (logging, metrics)
+ │ └── config.yaml
+ └── README.md
+
+ Convention notes
+ • Prefix stage files with a sequence number (**00**, **10**, **20**…) so order is obvious.
+
+ ─────────────────────────────────
+ 🔹 3. Dependency Rules
+ ─────────────────────────────────
+ ✔ Stage → contracts/, shared/, std-lib, third-party libs
+ ✘ Stage → another stage’s **implementation** (no “reach-inside”)
+ ✘ Cyclic imports among stages or shared code
+
+ ─────────────────────────────────
+ 🔹 4. Code Generation & Refactoring
+ ─────────────────────────────────
+
+ Create a new stage file or modify exactly ONE stage.
+
+ ─────────────────────────────────
+ 🔹 5. Best Practices
+ ─────────────────────────────────
+ • **Single-Responsibility Stage** – validation ≠ enrichment ≠ ML inference.
+ • **Idempotent processing** – a stage can safely re-run on the same record.
+ • **Explicit schemas** – Avro/Proto/JSON-Schema stored under contracts/.
+ • **Dead-letter queue** – send irrecoverable records to DLQ, don’t stop the flow.
+
+ ─────────────────────────────────
+ 🔹 6. Your Role
+ ─────────────────────────────────
+ Whenever you create or modify code:
+
+ 1. **Identify the affected stage** (or insert a new one).
+ 2. **Respect folder structure and dependency rules.**
+
+
+
+
+ Now that the files are created, use the following prompt to ask the AI to generate the game.
+
+
+
+Generate an application based on the description from @/snake_game.md, designed as described in @/layered_architecture/architecture.md. Run the app when you have completed the implementation.
+
+
+
+ Test the game in your browser to ensure whether all the features are working as expected.
+
+
+Results from the Study
+
+ The Layered Architecture achieved a 100% success rate for both initial generation and subsequent modifications.
+
+
+
+
+ | Metric |
+ Average Result |
+
+
+
+
+ | One-shot generation success |
+ 5/5 (100%) |
+
+
+ | One-shot modification success |
+ 5/5 (100%) |
+
+
+ | Architecture adherence (modification) |
+ 5/5 (100%) |
+
+
+ | Initial token consumption |
+ 16.22k ↑ / 248k ↓ |
+
+
+
diff --git a/project_57_ai_optimized_architectures/57_504_atomic_composable_architecture.html b/project_57_ai_optimized_architectures/57_504_atomic_composable_architecture.html
new file mode 100644
index 0000000..9f6a72e
--- /dev/null
+++ b/project_57_ai_optimized_architectures/57_504_atomic_composable_architecture.html
@@ -0,0 +1,143 @@
+
+3. Atomic Composable Architecture (ACA)
+
+ Atomic Composable Architecture borrows its concepts from Brad Frost's Atomic Design methodology and applies them to code organization. The core principle is to build complex systems from simple, predictable, and reusable components.
+
+
+
+ ACA structures code into three levels of increasing complexity:
+
+
+ - Atoms: The smallest, indivisible units of functionality, like a single function or constant. They have no internal dependencies.
+ - Molecules: Small modules that are composed of several atoms to perform a specific function.
+ - Organisms: Complete subsystems or features built by combining molecules.
+
+
+Advantages
+
+ - High degree of modularity and reusability.
+ - Components are easy to test in isolation.
+ - Scales well as new functionality is added.
+
+
+Disadvantages
+
+ - Can suffer from the "chain reaction" problem, where a change in a low-level atom requires changes in all dependent molecules and organisms.
+ - Requires strict discipline to manage dependencies.
+
+
+Let's Build a Snake Game
+
+ Let's build the Snake game again, this time using ACA. We'll use the same game specification but provide different architectural guidelines to the AI.
+
+
+
+
+
+ Create a file atomic_composable_architecture/architecture.md. Add the following content:
+
+ You are working in a codebase that MUST follow **Atomic Composable Architecture (ACA)**.
+
+─────────────────────────────────
+🔹 1. Core Idea
+─────────────────────────────────
+Build complex features by composing tiny, self-contained units.
+The hierarchy is:
+
+• **Atom** – a single pure function / small class / constant (≈ 5-50 Lines of code).
+ ▸ No runtime side-effects, no knowledge of the outside world, no imports from higher layers.
+
+• **Molecule** – a folder grouping several atoms plus tests (≈ 50-300 Lines of code).
+ ▸ Exposes a minimal public interface; depends only on atoms or other molecules in the same folder.
+
+• **Organism** – a complete subsystem or service (≈ 300-1500 Lines of code).
+ ▸ May hold state, start I/O, spin up workers, etc., but never leaks its internals upward.
+
+Each layer can depend **only on its own layer or lower layers**—never upward.
+
+─────────────────────────────────
+🔹 2. Folder Naming Rules
+─────────────────────────────────
+src/
+├── atoms/
+│ └── {filename}*.{ext}
+├── molecules/
+│ └── {filename}*.{ext}
+├── organisms/
+│ └── {filename}*.{ext}
+└── main.{ext} (if needed)
+
+─────────────────────────────────
+🔹 3. Allowed Imports
+─────────────────────────────────
+✔ Atom → std-lib, third-party libs, *never* other atoms.
+✔ Molecule → atoms in same folder, std-lib, third-party.
+✔ Organism → atoms & molecules, infrastructure libs.
+✘ Cyclic or upward imports are forbidden and should fail lint/CI.
+
+─────────────────────────────────
+🔹 4. Code Generation Targets
+─────────────────────────────────
+When generating or refactoring code, ALWAYS start at the lowest layer that changes the behavior.
+
+─────────────────────────────────
+🔹 5. Best Practices
+─────────────────────────────────
+• Pure functions first – push side-effects to the edges (organisms).
+• Prefer dependency injection over global state.
+• One public export per file unless strongly justified.
+• Document any place an atom’s change forces molecule/organism updates.
+• Whenever you create or modify code **Decide the correct layer** (atom / molecule / organism).
+
+
+
+ Use the following prompt to generate the game with ACA.
+
+
+
+Generate an application based on the description from @/snake_game.md, designed as described in @/atomic_composable_architecture/architecture.md. Run the app when you have completed the implementation.
+
+
+
+ Test the game in your browser to ensure whether all the features are working as expected.
+
+
+Results from the Study
+
+ ACA performed well during the initial generation, with a 100% success rate. However, it struggled significantly with modifications. The study found that making changes often caused a "chain reaction" that broke the architecture's integrity.
+
+
+
+
+ | Metric |
+ Average Result |
+
+
+
+
+ | One-shot generation success |
+ 5/5 (100%) |
+
+
+ | One-shot modification success |
+ 3/5 (60%) |
+
+
+ | Architecture adherence (modification) |
+ 1/5 (20%) |
+
+
+ | Initial token consumption |
+ 25.88k ↑ / 340.6k ↓ |
+
+
+
+
+ This pattern is excellent for initial builds of applications with rich, composable functionality, but it may require more careful handling during maintenance and evolution.
+
diff --git a/project_57_ai_optimized_architectures/57_505_vertical_slice_architecture.html b/project_57_ai_optimized_architectures/57_505_vertical_slice_architecture.html
new file mode 100644
index 0000000..cc60221
--- /dev/null
+++ b/project_57_ai_optimized_architectures/57_505_vertical_slice_architecture.html
@@ -0,0 +1,150 @@
+

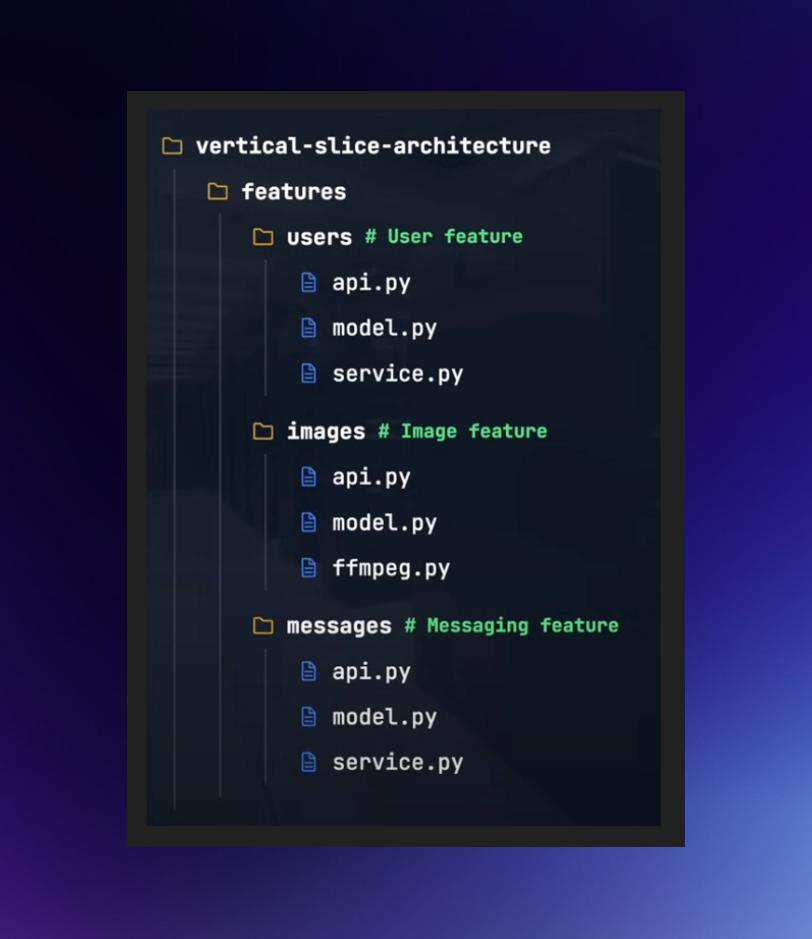

+4. Vertical Slice Architecture
+
+ Vertical Slice Architecture is an alternative to traditional layered architectures. Instead of organizing code into horizontal layers based on technical concerns (e.g., UI, business logic), this pattern organizes code around features, or "vertical slices."
+
+
+
+ Each slice encapsulates all the code needed for a specific feature, from the user interface down to the database. This approach promotes high cohesion within features and loose coupling between them.
+
+
+Advantages
+
+ - Easier to add or change features, as all related code is in one place.
+ - Minimizes dependencies between features.
+ - Good for applications with many independent features.
+
+
+Disadvantages
+
+ - Can lead to code duplication between slices if not managed carefully.
+ - May be less familiar to developers accustomed to layered architectures.
+
+
+Let's Build a Snake Game
+
+ Let's implement the Snake game one more time, now with Vertical Slice Architecture.
+
+
+
+
+ Create a file vertical_slice_architecture/architecture.md. Add the following content:
+
+ You are working in a codebase that MUST follow **Vertical Slice Architecture (VSA)**.
+
+ ─────────────────────────────────
+ 🔹 1. Core Idea
+ ─────────────────────────────────
+ Group code **by business feature, not by technical layer**.
+ Each *slice* is an end-to-end package that owns everything required for ONE user scenario:
+
+ • Transport adapter (HTTP/GraphQL/CLI)
+ • Request / Command / Query models
+ • Validation / Authorization
+ • Handler / Use-case logic
+ • Data access (repo or gateway)
+
+ **One feature, one folder, one dependency graph.**
+
+ ─────────────────────────────────
+ 🔹 2. Folder & Naming Rules
+ ─────────────────────────────────
+ src/
+ ├── shared_kernel/ # universal value objects, errors, utilities
+ ├── infrastructure/ # cross-cutting drivers (DB, broker, cache)
+ └── features/
+ ├── orders/
+ │ ├── place_order/
+ │ │ ├── PlaceOrderEndpoint.py
+ │ │ ├── PlaceOrderCommand.py
+ │ │ ├── PlaceOrderValidator.py
+ │ │ ├── PlaceOrderHandler.py
+ │ │ ├── repository.py # optional, slice-specific
+ │ │ └── test_place_order.py
+ │ └── get_order/
+ └── auth/
+ └── login/
+
+ Conventions:
+ • Top-level dir **features/**; sub-dirs are domains (**orders**, **auth**, etc.).
+ • Next level is the specific action (**place_order**, **login**).
+ • Name files after what they do;
+
+ ─────────────────────────────────
+ 🔹 3. Dependency Rules
+ ─────────────────────────────────
+ ✔ Slice → shared_kernel (value objects, errors)
+ ✔ Slice → infrastructure (only via interfaces or adapters)
+ ✘ Slice → another slice (avoid direct coupling; use events or shared_kernel)
+
+ ─────────────────────────────────
+ 🔹 4. Code Generation & Refactoring
+ ─────────────────────────────────
+ 1. **Create a new slice folder** for each new feature/change.
+ 2. Touch *only* that slice; other features remain untouched.
+ 3. If helper logic is reused by ≥ 3 slices, lift it to shared_kernel.
+
+ ─────────────────────────────────
+ 🔹 5. Your Role
+ ─────────────────────────────────
+ Whenever you create or modify code:
+
+ 1. **Identify/define the slice** that owns the change.
+ 2. **Conform strictly** to the folder structure and dependency rules.
+ 3. Reject or refactor any solution that couples slices directly or violates these principles.
+
+
+
+ Use the prompt below to have the AI generate the game.
+
+
+
+Generate an application based on the description from @/snake_game.md, designed as described in @/vertical_slice_architecture/architecture.md. Run the app when you have completed the implementation.
+
+
+
+ Test the game in your browser to ensure whether all the features are working as expected.
+
+
+Results from the Study
+
+ The Vertical Slice Architecture had mixed results. Its initial generation success rate was inconsistent (60%). However, for the successful generations, it performed perfectly on modification tasks, maintaining architectural integrity.
+
+
+
+
+ | Metric |
+ Average Result |
+
+
+
+
+ | One-shot generation success |
+ 3/5 (60%) |
+
+
+ | One-shot modification success |
+ 3/3 (100%)* |
+
+
+ | Architecture adherence (modification) |
+ 3/3 (100%)* |
+
+
+ | Initial token consumption |
+ 18.8k ↑ / 443.6k ↓ |
+
+
+
+
+ *Note: Only successful initial generations were tested for modifications.
+
+
+ This architecture is a strong choice for applications with independent features, as it excels at isolating changes and maintaining integrity during modifications.
+
diff --git a/project_57_ai_optimized_architectures/57_506_pipeline_architecture.html b/project_57_ai_optimized_architectures/57_506_pipeline_architecture.html
new file mode 100644
index 0000000..408644e
--- /dev/null
+++ b/project_57_ai_optimized_architectures/57_506_pipeline_architecture.html
@@ -0,0 +1,152 @@
+
+5. Pipeline Architecture
+
+ The Pipeline Architecture, also known as Pipes and Filters, is a pattern where data is processed through a series of sequential stages or "filters." Each stage in the pipeline performs a specific transformation on the data and passes the result to the next stage.
+
+
+
+ This pattern is commonly used for data processing tasks, compilers, and workflows where a task can be broken down into a series of independent, sequential steps.
+
+
+Advantages
+
+ - Simple, linear processing flow is easy to understand.
+ - Stages are decoupled and can be developed and tested independently.
+ - Highly scalable and allows for parallel processing of stages.
+
+
+Disadvantages
+
+ - Not well-suited for applications with complex user interactions or state management.
+ - Can be inefficient if the data needs to be transformed back and forth between formats for different stages.
+
+
+Let's Build a Snake Game
+
+ Finally, let's see how the Pipeline Architecture handles the Snake game.
+
+
+
+
+ Create a file pipeline_architecture/architecture.md. Add the following content:
+
+ You are working in a codebase that MUST follow **Pipeline Architecture (PA)**.
+
+─────────────────────────────────
+🔹 1. Core Idea
+─────────────────────────────────
+Process data as a linear (or branched) **flow of stages**:
+
+ Source ➜ Stage 1 ➜ Stage 2 ➜ … ➜ Sink
+
+• Each stage performs ONE atomic transformation, then immediately forwards the record.
+• Stages run concurrently; different records may sit on different stages at the same time.
+• Contracts (schema or typed DTO) between stages are explicit and version-controlled.
+
+“**Do one thing, pass it on.**”
+
+─────────────────────────────────
+🔹 2. Folder & Naming Rules
+─────────────────────────────────
+src/
+├── pipeline/
+│ ├── stages/
+│ │ ├── 00_source.py # emits records
+│ │ ├── 01_validate.py # Stage 1
+│ │ ├── 02_enrich.py # Stage 2
+│ │ ├── 03_predict.py # Stage 3
+│ │ ├── 04_sink.py # final drop-off
+│ │ └── __tests__/
+│ ├── runner.py # wires queues, sets back-pressure, starts tasks
+│ ├── contracts/ # Avro/Proto/JSON-Schema files
+│ ├── shared/ # generic utils (logging, metrics)
+│ └── config.yaml
+└── README.md
+
+Convention notes
+• Prefix stage files with a sequence number (**00**, **10**, **20**…) so order is obvious.
+
+─────────────────────────────────
+🔹 3. Dependency Rules
+─────────────────────────────────
+✔ Stage → contracts/, shared/, std-lib, third-party libs
+✘ Stage → another stage’s **implementation** (no “reach-inside”)
+✘ Cyclic imports among stages or shared code
+
+─────────────────────────────────
+🔹 4. Code Generation & Refactoring
+─────────────────────────────────
+
+Create a new stage file or modify exactly ONE stage.
+
+─────────────────────────────────
+🔹 5. Best Practices
+─────────────────────────────────
+• **Single-Responsibility Stage** – validation ≠ enrichment ≠ ML inference.
+• **Idempotent processing** – a stage can safely re-run on the same record.
+• **Explicit schemas** – Avro/Proto/JSON-Schema stored under contracts/.
+• **Dead-letter queue** – send irrecoverable records to DLQ, don’t stop the flow.
+
+─────────────────────────────────
+🔹 6. Your Role
+─────────────────────────────────
+Whenever you create or modify code:
+
+1. **Identify the affected stage** (or insert a new one).
+2. **Respect folder structure and dependency rules.**
+
+
+
+ Use the prompt below to generate the game.
+
+
+
+Generate an application based on the description from @/snake_game.md, designed as described in @/pipeline_architecture/architecture.md. Run the app when you have completed the implementation.
+
+
+
+ Test the game in your browser to ensure whether all the features are working as expected.
+
+
+Results from the Study
+
+ The Pipeline Architecture was a poor fit for this type of interactive application. It had a very low success rate for the initial generation (20%) and was difficult for the AI to implement correctly.
+
+
+
+
+ | Metric |
+ Average Result |
+
+
+
+
+ | One-shot generation success |
+ 1/5 (20%) |
+
+
+ | One-shot modification success |
+ 1/1 (100%)* |
+
+
+ | Architecture adherence (modification) |
+ 1/1 (100%)* |
+
+
+ | Initial token consumption |
+ 25.6k ↑ / 210k ↓ |
+
+
+
+
+ *Note: Only one successful initial generation was achieved and tested.
+
+
+ This demonstrates the importance of choosing an architecture that matches the problem domain. While Pipeline is powerful for data processing, it is not ideal for event-driven, interactive applications like a game.
+
diff --git a/project_57_ai_optimized_architectures/57_507_conclusions.html b/project_57_ai_optimized_architectures/57_507_conclusions.html
new file mode 100644
index 0000000..7fe6610
--- /dev/null
+++ b/project_57_ai_optimized_architectures/57_507_conclusions.html
@@ -0,0 +1,84 @@
+
+
+6. Conclusions and Key Takeaways
+
+ This project demonstrated that codebase architecture has a significant impact on the effectiveness of AI coding tools. By experimenting with four different architectural patterns, we've seen how choosing the right structure can lead to higher success rates, and more efficient token usage.
+
+
+Performance Ranking
+
+ Based on the overall performance across all metrics in the study, here is the final ranking of the architectures:
+
+
+ - Layered Architecture: The clear winner, with 100% success rates in both generation and modification, and the best token efficiency. Its familiarity and clear separation of concerns make it highly compatible with current AI models.
+ - Atomic Composable Architecture: Performed well for initial generation but struggled to maintain its integrity during modifications due to the "chain reaction" problem.
+ - Vertical Slice Architecture: Showed inconsistent initial generation but was very robust and effective for modifications, making it a good choice for feature-rich applications.
+ - Pipeline Architecture: Was a poor fit for an interactive application like a game, resulting in a very low success rate. This highlights the importance of matching the architecture to the problem domain.
+
+
+Architecture Selection Guidelines
+
+ The research provides the following guidelines for choosing an architecture for your next AI-assisted project:
+
+
+
+
+ | Architecture |
+ Best Use Cases |
+
+
+
+
+ | Layered |
+ Applications with a clear separation between UI, logic, and data (e.g., MVC-style apps). |
+
+
+ | Vertical Slice |
+ Applications with many independent features that can be developed in isolation. |
+
+
+ | Atomic Composable |
+ Applications with rich functionality that needs to be composed in various ways. |
+
+
+ | Pipeline |
+ Sequential data processing and transformation tasks. |
+
+
+
+
+Limitations of the Study
+
+ It's important to acknowledge the limitations of the research that this project is based on. The findings provide valuable insights, but they are not universal. Keep the following in mind:
+
+
+ - Single Test Case: The results are based on a single application (the Snake game).
+ - Specific LLM: The tests were conducted with a single model (Claude Sonnet 3.7). Performance will vary with other models.
+ - Small Sample Size: The experiment was limited to five runs per architecture.
+ - Specific Tooling: The results are tied to the specific code generation tool used (RooCode).
+
+
+ We encourage you to experiment with these architectures on your own projects and with your preferred tools to see what works best for you.
+
+
+Best Practices for AI-Optimized Codebases
+
+ To make your codebase more AI-friendly, consider the following best practices:
+
+
+ - Prioritize Familiar Patterns: Use well-established architectural patterns that LLMs have likely seen frequently in their training data.
+ - Optimize for Token Efficiency: Design code that requires minimal context for the AI to understand a task.
+ - Maintain Clear Boundaries: Ensure that your architectural components (layers, slices, atoms) have well-defined responsibilities and interfaces.
+ - Consider Chain Effects: Be mindful of how changes might propagate through your chosen architecture.
+ - Manage Context Actively: Design your codebase to make it easy to provide the right context to the AI for any given task.
+
+
+
+ The key insight from this course is that context management through architectural design is crucial for AI coding effectiveness. By considering the requirements of AI tools alongside traditional architectural principles, development teams can maximize the benefits of AI-assisted programming.
+
diff --git a/project_57_ai_optimized_architectures/project.json b/project_57_ai_optimized_architectures/project.json
new file mode 100644
index 0000000..b8315f2
--- /dev/null
+++ b/project_57_ai_optimized_architectures/project.json
@@ -0,0 +1,10 @@
+{
+ "id": 57,
+ "description": "This project explores how different software architectures impact AI-assisted coding. Based on research from the vibe-coding-architectures repository, it guides you through building a Snake game using four different patterns—Layered, Atomic Composable, Vertical Slice, and Pipeline—to see how each performs with an AI assistant.",
+ "title": "AI-Optimized Software Architectures",
+ "categories": "Junie, AI, Software Architecture, Vibe Coding",
+ "cover_url": "https://ucarecdn.com/91411e34-76e7-468d-92c9-755a2dffa7fd/",
+ "readme": "### Welcome to AI-Optimized Software Architectures!\\n\\nIn this project, you'll explore the crucial link between software design and the performance of AI coding assistants. You'll learn how to structure your codebases to help AI tools understand context, generate better code, and use fewer resources.\\n\\n#### What You'll Learn:\\n\\n* The impact of architecture on AI effectiveness (token consumption, context management).\\n* Hands-on implementation of four architectural patterns:\\n * Layered Architecture\\n * Atomic Composable Architecture\\n * Vertical Slice Architecture\\n * Pipeline Architecture\\n* How to guide an AI assistant to build a complete Snake game using each pattern.\\n* Best practices for creating AI-friendly code.\\n\\nThis project is based on the research and experiments from the [vibe-coding-architectures](https://github.com/ipospelov/vibe-coding-architectures) repository. By the end, you'll have a practical understanding of how to choose the right architecture for your AI-assisted development workflow.",
+ "short_description": "Learn how to design codebases that are optimized for AI coding assistants.",
+ "ides": "junie, cursor, windsurf"
+}
