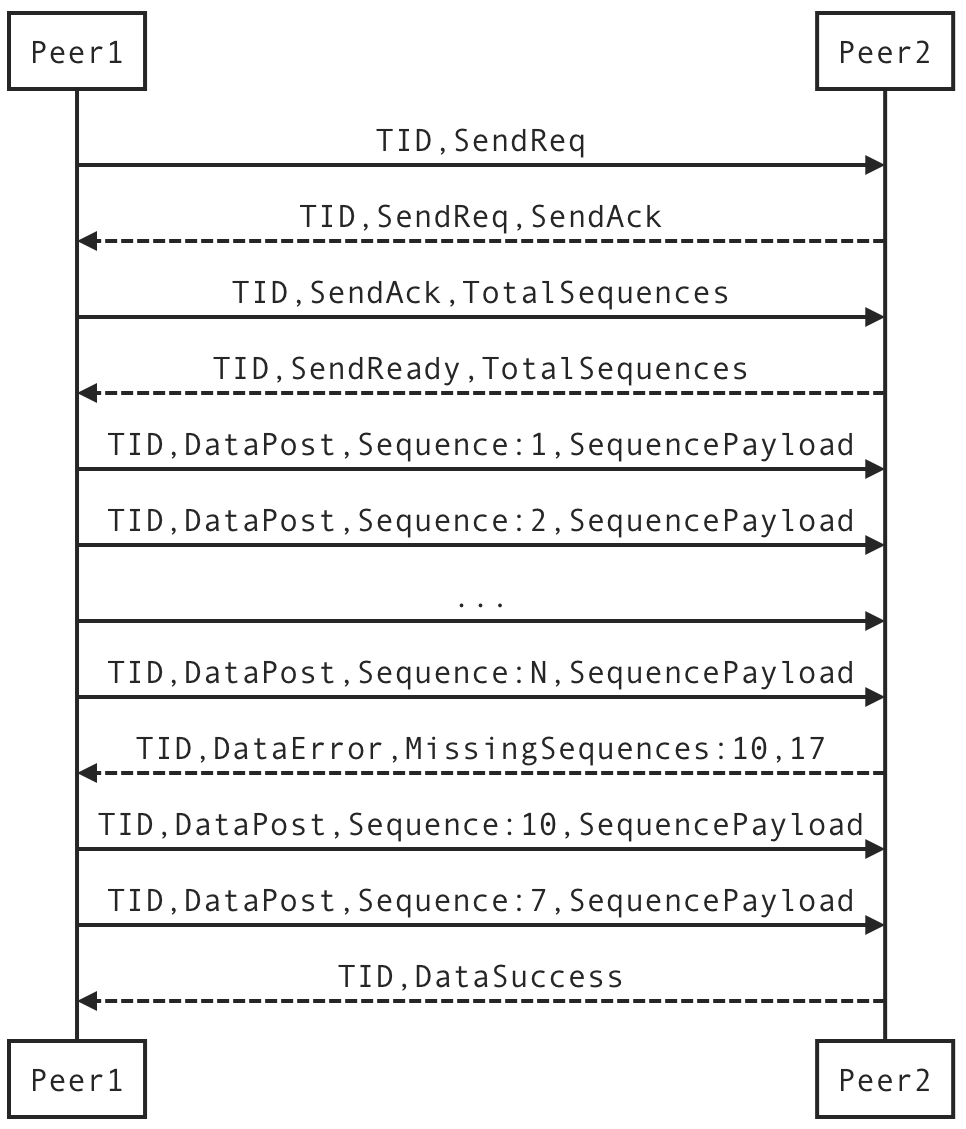

Maximum size of a single UDP packet is 64KiB. Thus, a message large than 64KiB must be split and sent on multiple packets. The following sequence diagram illustrates the process of sending these multiple packets.
TID is transaction IDSendReq, SendAck, SendRead, DataPost, DataError, DataSuccess are packet typesTotalSequences is total packets of the data that will be sentSequence is the sequence number of payload as a subset of the dataSequencePayload is the payload a particular packetMissingSequences is a list of sequences that have not received
Maximum size of a single UDP packet is 64KiB. Thus, a message large than 64KiB must be split and sent on multiple packets. The following sequence diagram illustrates the process of sending these multiple packets.
TIDis transaction IDSendReq, SendAck, SendRead, DataPost, DataError, DataSuccessare packet typesTotalSequencesis total packets of the data that will be sentSequenceis the sequence number of payload as a subset of the dataSequencePayloadis the payload a particular packetMissingSequencesis a list of sequences that have not received
